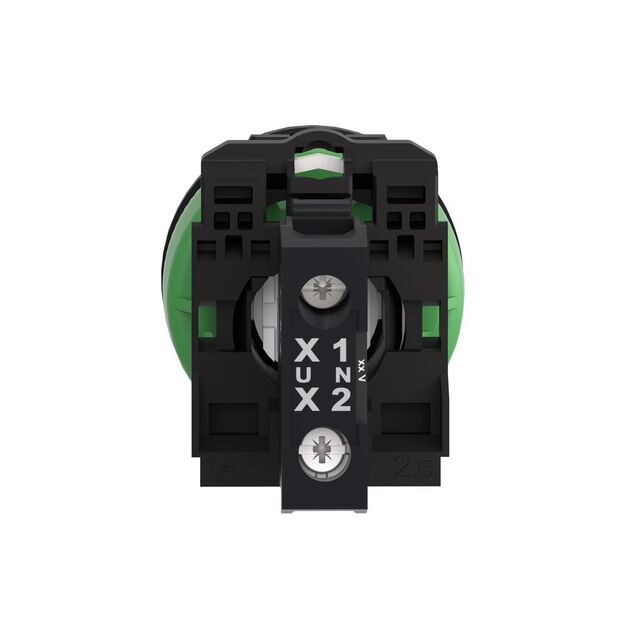

XB5FVB4

Active

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY XB5, ANTIMICROBIAL PILOT

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY XB5, ANTIMICROBIAL PILOT

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings	Type	Lamp Color	Voltage [Min]	Voltage [Max]	Panel Cutout Shape	Termination Style	Current	Lens Color	Voltage
SQUARE D BY SCHNEIDER ELECTRIC XB5FVM3	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC	LED	Green	230 V	240 V	Round	Screw Terminal	14 mA	Green
SQUARE D BY SCHNEIDER ELECTRIC XB5FVB4	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC/DC	LED	Red			Round	Screw Terminal	18 mA	Red	24 V
SQUARE D BY SCHNEIDER ELECTRIC XB5FVG1	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC	LED	White	110 V	120 V	Round	Screw Terminal	14 mA	White
SQUARE D BY SCHNEIDER ELECTRIC XB5FVB3	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC/DC	LED	Green			Round	Screw Terminal	18 mA	Green	24 V
SQUARE D BY SCHNEIDER ELECTRIC XB5FVB6	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC/DC	LED	Blue			Round	Screw Terminal	18 mA	Blue	24 V
SQUARE D BY SCHNEIDER ELECTRIC XB5FVG3	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC	LED	Green	110 V	120 V	Round	Screw Terminal	14 mA	Green
SQUARE D BY SCHNEIDER ELECTRIC XB5FVM5	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC	LED	Orange	230 V	240 V	Round	Screw Terminal	14 mA	Orange
SQUARE D BY SCHNEIDER ELECTRIC XB5FVB1	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC/DC	LED	White			Round	Screw Terminal	18 mA	White	24 V
SQUARE D BY SCHNEIDER ELECTRIC XB5FVG6	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC	LED	Blue	110 V	120 V	Round	Screw Terminal	14 mA	Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red 24V 18mA Screw Terminal
