BG0703-B044-00L-00

Obsolete

NMB TECHNOLOGIES

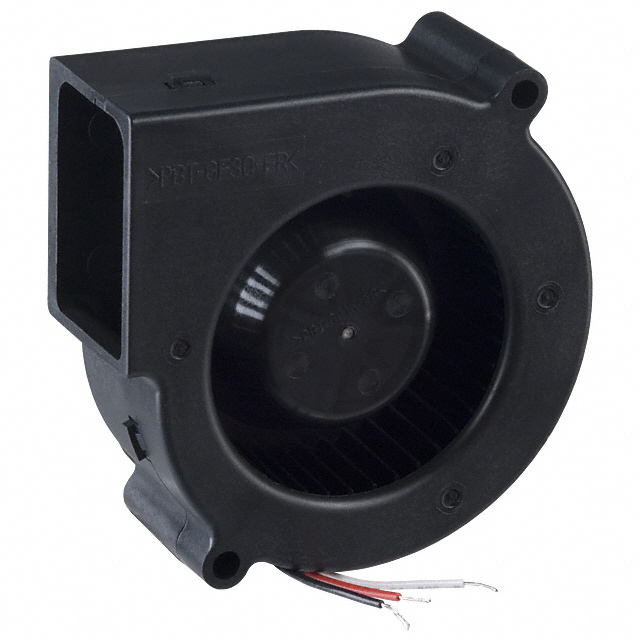

FAN BLOWER 75.7X30MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

NMB TECHNOLOGIES

FAN BLOWER 75.7X30MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Material - Blade	Bearing Type	RPM	Current Rating (Amps)	Noise	Fan Type	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Air Flow	Air Flow	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Static Pressure	Static Pressure	Voltage - Rated	Material - Frame	Lifetime @ Temp.
NMB TECHNOLOGIES BG0703-B044-00L-00	3.48 W	Plastic	Ball	3000 RPM	0.29 A	38.5 dB	Blower	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.198 lb	89.81 g	0.297 m³/min	10.6 CFM	30 mm	6 VDC	13 VDC	CE CSA UL VDE	Locked Rotor Sensor	75.7 mm	75.7 mm	Square/Rounded	0.441 in H2O	110 Pa	12 VDC	Plastic
NMB TECHNOLOGIES BG0703-B055-000-00		Plastic	Ball				Blower	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.198 lb	89.81 g			30 mm					75.7 mm	75.7 mm				24 VDC	Plastic	70000 Hrs
NMB TECHNOLOGIES BG0703-B045-000-00		Plastic	Ball				Blower	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.198 lb	89.81 g			30 mm					75.7 mm	75.7 mm				12 VDC	Plastic	70000 Hrs
NMB TECHNOLOGIES BG0703-B052-000-00	1.68 W	Plastic	Ball	2200 RPM	70 mA	29.5 dB(A)	Blower	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.198 lb	89.81 g	0.207 mł/min	7.4 CFM	30 mm	10 VDC	27.6 VDC			75.7 mm	75.7 mm	Square/Rounded	0.2 in H2O	49.8 Pa	24 VDC	Plastic
NMB TECHNOLOGIES 07530GA-24N-AA-00	4.8 W	Plastic	Ball	3650 RPM	0.2 A	43 dB	Blower	2 Wire Leads	70 °C	70 °C	-40 °C	-40 °C			0.367 mł/min	13.1 CFM	30 mm	10 VDC	26.2 VDC		Auto Restart	75.7 mm	75.7 mm	Square/Rounded	0.66 in H2O	164.4 Pa	24 VDC	Plastic	70000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 12VDC Square/Rounded - 75.7mm L x 75.7mm H Ball 10.6 CFM (0.297m³/min) 3 Wire Leads
