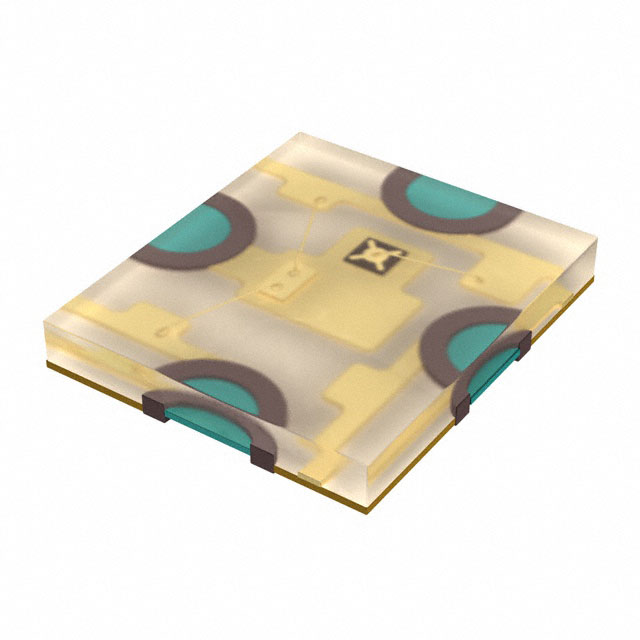

CL-503T-SD-T
ActiveCitizen Finedevice Co Ltd
LED RGB SMD 1.5 X 1.3
Deep-Dive with AI
Search across all available documentation for this part.
CL-503T-SD-T
ActiveCitizen Finedevice Co Ltd
LED RGB SMD 1.5 X 1.3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CL-503T-SD-T |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 5 mA |
| Current - Test [custom] | 5 mA |
| Current - Test [custom] | 5 mA |
| Height (Max) [Max] | 0.35 mm |
| Lens Size [x] | 1.3 mm |
| Lens Size [y] | 1.5 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating [custom] | 180 mcd |
| Millicandela Rating [custom] | 40 mcd |
| Millicandela Rating [custom] | 36 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 1.5 mm |
| Size / Dimension [y] | 1.3 mm |
| Voltage - Forward (Vf) (Typ) | 2.75 V, 1.85 V, 2.7 V |
| Wavelength - Peak | 530 nm, 470 nm, 618 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.85 | |
| 10 | $ 0.51 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.25 | |||
| 2000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.85 | ||
| 10 | $ 0.51 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.25 | |||
| 2000 | $ 0.24 | |||
| Tape & Reel (TR) | 5000 | $ 0.22 | ||
| 10000 | $ 0.21 | |||
| 15000 | $ 0.20 | |||
| 25000 | $ 0.20 | |||
| 35000 | $ 0.19 | |||
| 50000 | $ 0.19 | |||
Description
General part information
CL-503 Series
Red, Green, Blue (RGB) LED Indication - Discrete 1.85V Red, 2.7V Green, 2.75V Blue 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
