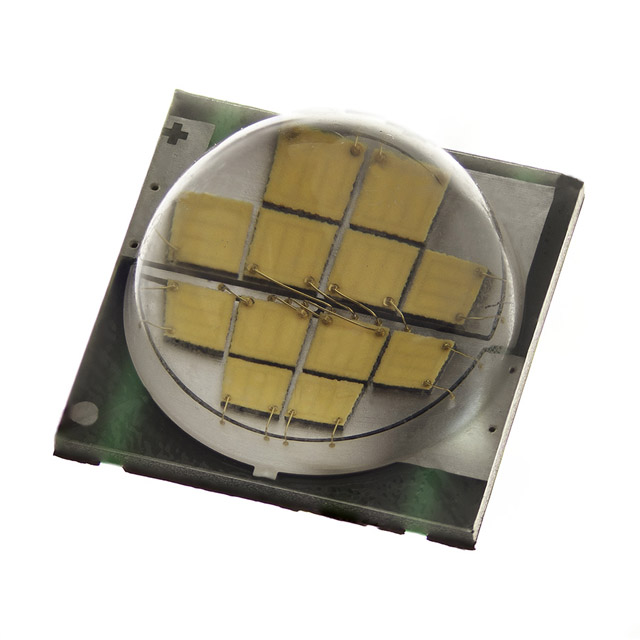

MTGEZW-00-0000-0N00E027H

Obsolete

Cree LED

LED EASYWHT WARM WHT 2700K 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

MTGEZW-00-0000-0N00E027H

Obsolete

Cree LED

LED EASYWHT WARM WHT 2700K 2SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTGEZW-00-0000-0N00E027H

CCT (K)	2700 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	700 mA
Current - Test	185 mA
Flux @ 85°C, Current - Test	460 lm
Height - Seated (Max) [Max] [z]	5.1 mm
Height - Seated (Max) [Max] [z]	0.201 in
Lumens/Watt @ Current - Test	69 lm/W
Mounting Type	Surface Mount
Package / Case	3535
Package / Case	9090 Metric
Size / Dimension [x]	0.35 in
Size / Dimension [x]	8.9 mm
Size / Dimension [y]	0.35 "
Size / Dimension [y]	8.9 mm
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	1.5 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	36 V

MTGEZW Series

Part	Voltage - Forward (Vf) (Typ)	Viewing Angle	Mounting Type	Current - Test	Color	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Package / Case	Package / Case	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Thermal Resistance of Package [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 85°C, Current - Test	Supplier Device Package	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	CCT (K)
Cree LED MTGEZW-01-0000-0N0PE027H	36 V	120 °	Surface Mount	185 mA	Warm White	700 mA	0.35 in	0.35 "	8.9 mm	8.9 mm	2700 K	3535	9090 Metric	85	69 lm/W	1.5 °C/W	5.1 mm	0.201 in	460 lm	SMD
Cree LED MTGEZW-01-0000-0N0PD027F	36 V	120 °	Surface Mount	185 mA	Warm White	700 mA	0.35 in	0.35 "	8.9 mm	8.9 mm	2700 K	3535	9090 Metric	85	63 lm/W	1.5 °C/W	5.1 mm	0.201 in	420 lm	SMD	440 lm	400 lm	4-Step MacAdam Ellipse
Cree LED MTGEZW-00-0000-0N00H040H	36 V	120 °	Surface Mount	185 mA	Neutral White	700 mA	0.35 in	0.35 "	8.9 mm	8.9 mm	4000 K	3535	9090 Metric	77	87 lm/W	1.5 °C/W	5.1 mm	0.201 in	580 lm	SMD	600 lm	560 lm
Cree LED MTGEZW-00-0000-0N00E030F	36 V	120 °	Surface Mount	185 mA	Warm White	700 mA	0.35 in	0.35 "	8.9 mm	8.9 mm	3000 K	3535	9090 Metric	80	69 lm/W	1.5 °C/W	5.1 mm	0.201 in	460 lm	SMD
Cree LED MTGEZW-00-0000-0N0UC030H	36 V	120 °	Surface Mount	185 mA	Warm White	700 mA	0.35 in	0.35 "	8.9 mm	8.9 mm	3000 K	3535	9090 Metric	90	58 lm/W	1.5 °C/W	5.1 mm	0.201 in	385 lm	SMD	400 lm	370 lm
Cree LED MTGEZW-00-0000-0N0PF030F	36 V	120 °	Surface Mount	185 mA	Warm White	700 mA	0.35 in	0.35 "	8.9 mm	8.9 mm	3000 K	3535	9090 Metric	85	75 lm/W	1.5 °C/W	5.1 mm	0.201 in	500 lm	SMD	520 lm	480 lm
Cree LED MTGEZW-01-0000-0N00G040H	36 V	120 °	Surface Mount	185 mA	Neutral White	700 mA	0.35 in	0.35 "	8.9 mm	8.9 mm	4000 K	3535	9090 Metric	77	81 lm/W	1.5 °C/W	5.1 mm	0.201 in	540 lm	SMD
Cree LED MTGEZW-01-0000-0N00H035F	36 V	120 °	Surface Mount	185 mA	Warm White	700 mA	0.35 in	0.35 "	8.9 mm	8.9 mm		3535	9090 Metric	77	87 lm/W	1.5 °C/W	5.1 mm	0.201 in	580 lm	SMD	600 lm	560 lm
Cree LED MTGEZW-00-0000-0N00E027H	36 V	120 °	Surface Mount	185 mA	Warm White	700 mA	0.35 in	0.35 "	8.9 mm	8.9 mm	2700 K	3535	9090 Metric	80	69 lm/W	1.5 °C/W	5.1 mm	0.201 in	460 lm	SMD
Cree LED MTGEZW-00-0000-0N00G040H	36 V	120 °	Surface Mount	185 mA	Neutral White	700 mA	0.35 in	0.35 "	8.9 mm	8.9 mm	4000 K	3535	9090 Metric	77	81 lm/W	1.5 °C/W	5.1 mm	0.201 in	540 lm	SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MTGEZW Series

LED Lighting EasyWhite®, XLamp® MTG EZW White, Warm 2700K 2-Step MacAdam Ellipse 36V 185mA 120° 3535 (9090 Metric)

Documents

Technical documentation and resources

No documents available
