C8123.41.86

Active

Prysmian Group

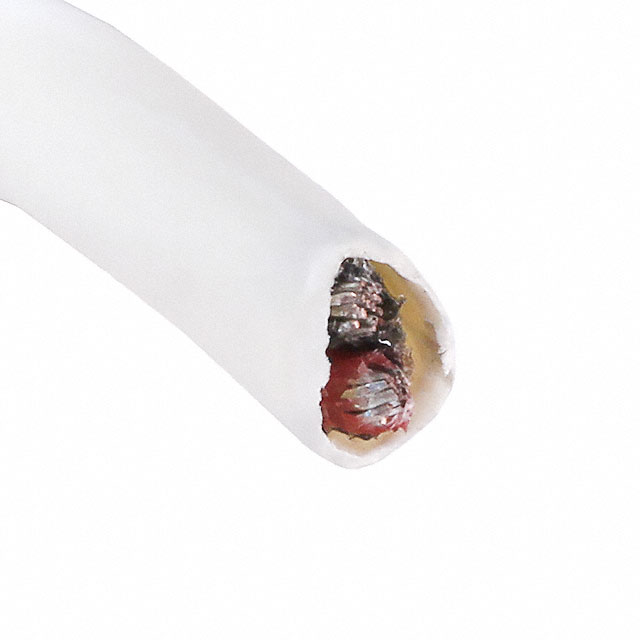

CABLE 2COND 18AWG NATURAL

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 18AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	C8123.41.86

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.06 mm
Jacket (Insulation) Diameter [diameter]	0.16 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Natural
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	500 ', 50 ft, 100 ft
Length [x]	152.4 m, 30.5 m
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Length [x]	Length [x]	Length	Length	Shield Type	Voltage	Jacket Color	Usage	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Shield Material	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Insulation	Features
Prysmian Group C8123.41.86	50 ft 100 ft 500 '	30.5 m 152.4 m	1000 ft	15.24 m 304.8 m	Foil	300 V	Natural	Communication Control	2	4.06 mm	0.16 in	100 %	Multi-Conductor	19	30 AWG	Copper Tinned	Flexfoil®	Poly-Vinyl Chloride (PVC)	0.356 mm	0.014 in	18 AWG	Fluorinated Ethylene-Propylene (FEP)	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Natural 18 AWG Foil 1000.0' (304.8m)

Technical documentation and resources

No documents available
