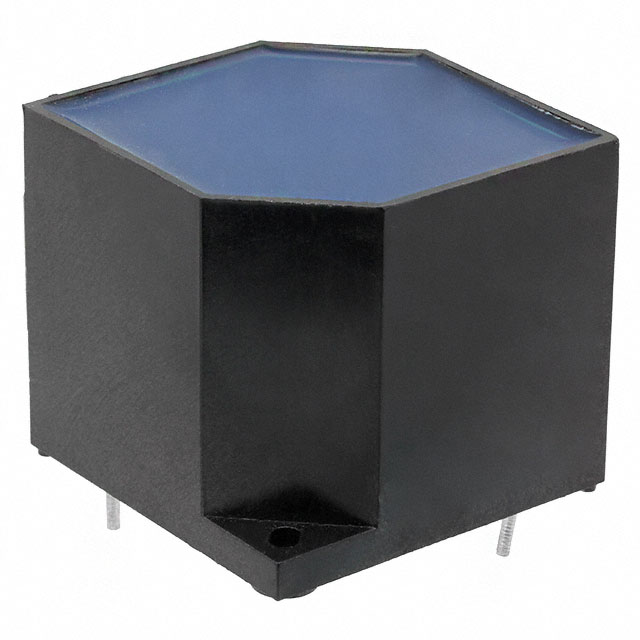

DLFL-0147-25D2

Active

SCHURTER Inc.

CMC 25A 2LN TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 25A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	DLFL-0147-25D2

Current Rating (Max) [Max]	25 A
DC Resistance (DCR) (Max) [Max]	10 mOhm
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Radial
Size / Dimension [x]	50 mm
Size / Dimension [x]	1.969 in
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50 mm
Voltage Rating - AC	440 V

Part	Current Rating (Max) [Max]	Voltage Rating - AC	Operating Temperature [custom]	Number of Lines	DC Resistance (DCR) (Max) [Max]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type
SCHURTER Inc. DLFL-0125-08D5	8 A	440 V	-25 °C 100 °C	2	54 mOhm	Radial	1.575 in	1.575 in	40 mm	40 mm	Through Hole
SCHURTER Inc. DLFL-0147-25D2	25 A	440 V	-25 °C 100 °C	2	10 mOhm	Radial	1.969 in	1.969 in	50 mm	50 mm	Through Hole
SCHURTER Inc. DLFL-0147-12D5	12 A	440 V	-25 °C 100 °C	2	38 mOhm	Radial	1.969 in	1.969 in	50 mm	50 mm	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Line Common Mode Choke Through Hole 25A DCR 10mOhm
