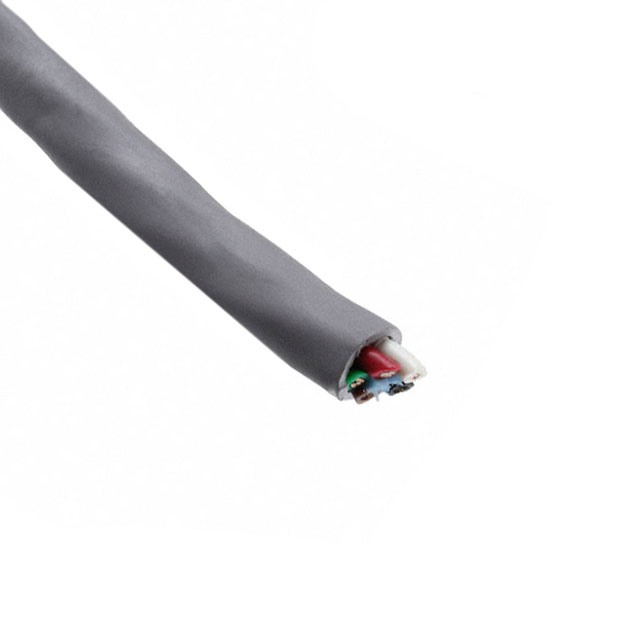

M13405 SL001

Active

ALPHA WIRE

CABLE 5COND 20AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 5COND 20AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	M13405 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	6.05 mm
Jacket (Insulation) Diameter [diameter]	0.238 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	5
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket Color	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Material	Ratings	Jacket (Insulation) Material	Number of Conductors	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Cable Type	Length	Length
ALPHA WIRE M13405 SL005	Slate	20 AWG	-20 C	80 C	6.05 mm	0.238 in	300 V	Copper Tinned	UL Style 2464	Poly-Vinyl Chloride (PVC)	5	30.5 m	100 ft	28	7	Poly-Vinyl Chloride (PVC)	Multi-Conductor
ALPHA WIRE M13405 SL001	Slate	20 AWG	-20 C	80 C	6.05 mm	0.238 in	300 V	Copper Tinned	UL Style 2464	Poly-Vinyl Chloride (PVC)	5			28	7	Poly-Vinyl Chloride (PVC)	Multi-Conductor	1000 ft	304.8 m
ALPHA WIRE M13405 SL002	Slate	20 AWG	-20 C	80 C	6.05 mm	0.238 in	300 V	Copper Tinned	UL Style 2464	Poly-Vinyl Chloride (PVC)	5	152.4 m	500 '	28	7	Poly-Vinyl Chloride (PVC)	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 658.02

General part information

5 Conductor Multi-Conductor Cable Slate 20 AWG 1000.0' (304.8m)
