EDZ1700/9

Active

On Shore Technology Inc.

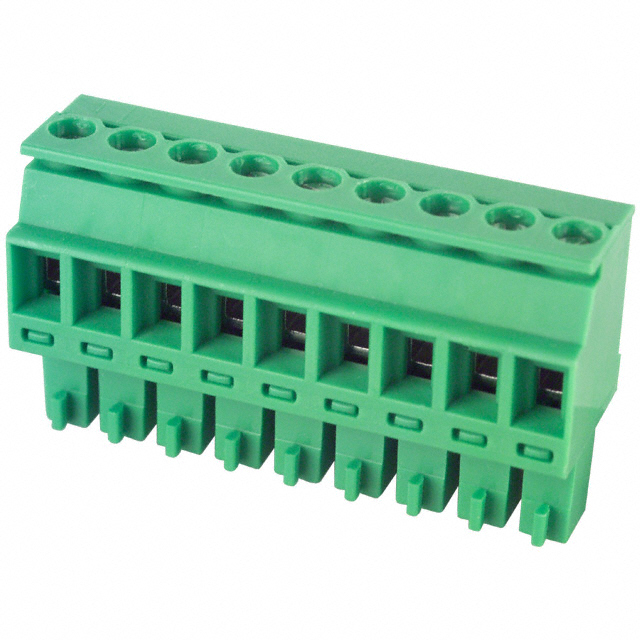

TERM BLOCK PLUG 9POS 3.81MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EDZ1700/9

Active

On Shore Technology Inc.

TERM BLOCK PLUG 9POS 3.81MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDZ1700/9

Color	Green
Contact Material	Copper Tin Alloy
Housing Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	9
Termination Style	Screw
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Gauge or Range - mm˛	1.5 mm˛
Wire Strip Length	7 mm

EDZ1700 Series

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - UL	Termination Style	Wire Strip Length	Type	Number of Levels	Wire Gauge or Range - mm²	Mounting Type	Housing Material	Positions Per Level	Wire Gauge or Range - mm˛	Number of Positions
On Shore Technology Inc. EDZ1700/18	18	-30 ░C	105 ░C	Green	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	0.15 in	3.81 mm	28 AWG	16 AWG	300 V	Screw	7 mm	Plug Female Sockets	1	1.5 mm²	Free Hanging (In-Line)	Polyamide (PA) Nylon	18
On Shore Technology Inc. EDZ1700/9	9	-30 ░C	105 ░C	Green	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	0.15 in	3.81 mm	28 AWG	16 AWG	300 V	Screw	7 mm	Plug Female Sockets	1		Free Hanging (In-Line)	Polyamide (PA) Nylon	9	1.5 mm˛
On Shore Technology Inc. EDZ1700/5		-30 ░C	105 ░C	Green	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	0.15 in	3.81 mm	28 AWG	16 AWG	300 V	Screw	7 mm	Plug Female Sockets	1		Free Hanging (In-Line)	Polyamide (PA) Nylon	5	1.5 mm˛
On Shore Technology Inc. EDZ1700/4	4	-30 ░C	105 ░C	Green	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	0.15 in	3.81 mm	28 AWG	16 AWG	300 V	Screw	7 mm	Plug Female Sockets	1		Free Hanging (In-Line)	Polyamide (PA) Nylon	4	1.5 mm˛
On Shore Technology Inc. EDZ1700/16		-30 ░C	105 ░C	Green	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	0.15 in	3.81 mm	28 AWG	16 AWG	300 V	Screw	7 mm	Plug Female Sockets	1		Free Hanging (In-Line)	Polyamide (PA) Nylon	16	1.5 mm˛	16
On Shore Technology Inc. EDZ1700/3		-30 ░C	105 ░C	Green	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	0.15 in	3.81 mm	28 AWG	16 AWG	300 V	Screw	7 mm	Plug Female Sockets	1		Free Hanging (In-Line)	Polyamide (PA) Nylon	3	1.5 mm˛
On Shore Technology Inc. EDZ1700/14	14	-30 ░C	105 ░C	Green	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	0.15 in	3.81 mm	28 AWG	16 AWG	300 V	Screw	7 mm	Plug Female Sockets	1		Free Hanging (In-Line)	Polyamide (PA) Nylon	14	1.5 mm˛
On Shore Technology Inc. EDZ1700/2	2	-30 ░C	105 ░C	Green	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	0.15 in	3.81 mm	28 AWG	16 AWG	300 V	Screw	7 mm	Plug Female Sockets	1		Free Hanging (In-Line)	Polyamide (PA) Nylon	2	1.5 mm˛
On Shore Technology Inc. EDZ1700/8	8	-30 ░C	105 ░C	Green	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	0.15 in	3.81 mm	28 AWG	16 AWG	300 V	Screw	7 mm	Plug Female Sockets	1		Free Hanging (In-Line)	Polyamide (PA) Nylon	8	1.5 mm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 4.83

Description

General part information

EDZ1700 Series

9 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) Free Hanging (In-Line)
