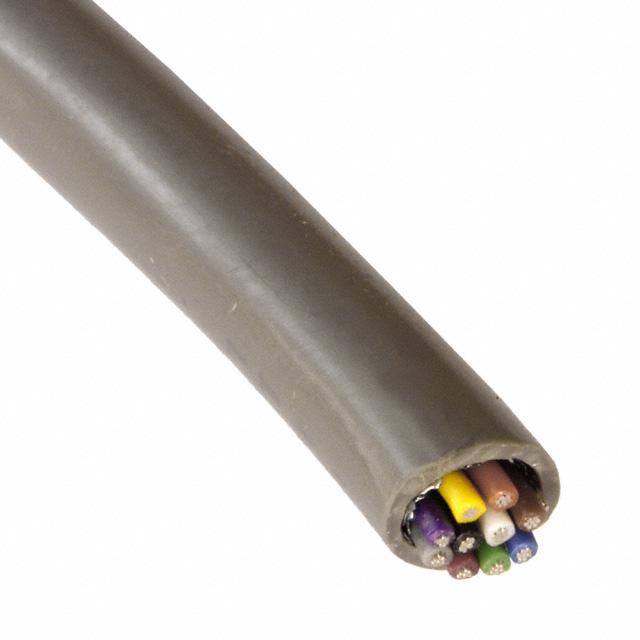

C0745A.18.10

Obsolete

Prysmian Group

CABLE 10COND 24AWG GRAY SHLD

Search across all available documentation for this part.

Obsolete

Prysmian Group

CABLE 10COND 24AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	C0745A.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.22 mm
Jacket (Insulation) Diameter [diameter]	0.245 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Voltage	Conductor Insulation	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket (Insulation) Material	Shield Coverage	Usage	Shield Material	Shield Type	Wire Gauge	Jacket Color	Cable Type	Features
Prysmian Group C0745A.18.10	-20 C	80 C	500 '	152.4 m	300 V	Poly-Vinyl Chloride (PVC)	10	32 AWG	7	6.22 mm	0.245 in	Copper Tinned	Poly-Vinyl Chloride (PVC)	100 %	Computer	Flexfoil®	Foil	24 AWG	Gray	Multi-Conductor	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 Conductor Multi-Conductor Cable Gray 24 AWG Foil 500.0' (152.4m)

Technical documentation and resources

No documents available
