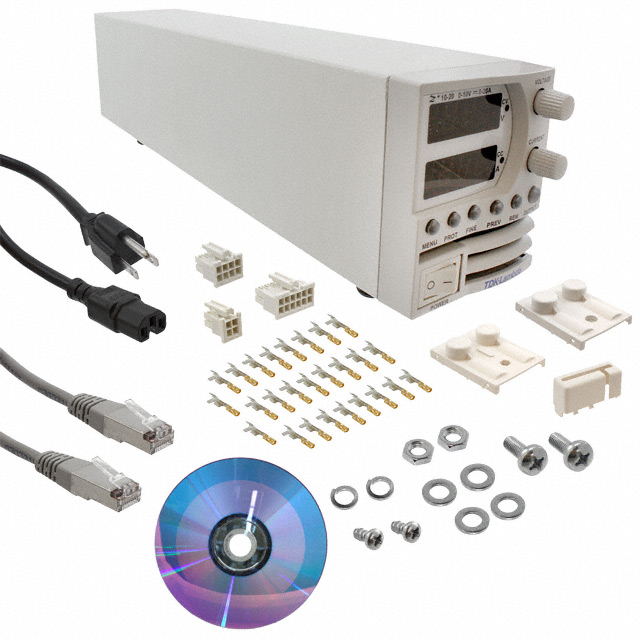

Z10-20-LAN-U

Active

TDK-LAMBDA

AC/DC PROGRAMMABLE SUPPLY 0-10V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZ+ Series Brochure General Safety Inst +1

Z10-20-LAN-U

Active

TDK-LAMBDA

AC/DC PROGRAMMABLE SUPPLY 0-10V

Deep-Dive with AI

DocumentsZ+ Series Brochure General Safety Inst +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Z10-20-LAN-U

Accuracy - Voltmeter; Ammeter	0.5% + 1 count
Current - Output [Max]	20 A
Current - Output [Min]	0 A
Current Regulation - Line	2 mA
Current Regulation - Load	5 mA
Display Type	Digital
Features	RS485, Programmable, LAN, RS232, USB Interface
Number of Characters	4
Number of Outputs	1
Power (Watts)	200 W
Ripple	5 mV
Size / Dimension [x]	13.78 "
Size / Dimension [x]	350 mm
Size / Dimension [y]	2.756 "
Size / Dimension [y]	70 mm
Size / Dimension [z]	3.268 "
Size / Dimension [z]	83 mm
Type	Bench (AC to DC)
Voltage - Output [Max]	10 V
Voltage - Output [Min]	0 VDC
Voltage - Supply [Max]	265 VAC
Voltage - Supply [Min]	85 VAC
Voltage Regulation - Load	2 mV
Weight	1.9 kg
Weight	4.2 lbs

Z10-20 Series

Part	Type	Ripple	Display Type	Features	Number of Outputs	Current - Output [Max]	Number of Characters	Voltage Regulation - Load	Weight	Weight	Voltage - Supply [Max]	Voltage - Supply [Min]	Current Regulation - Load	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output [Max]	Current Regulation - Line	Accuracy - Voltmeter; Ammeter	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
TDK-LAMBDA Z10-20-IS510-U	Bench (AC to DC)	5 mV	Digital	Programmable RS232 RS485 USB Interface	1	20 A	4	2 mV	2.4 kg	5.3 lbs	265 VAC	85 VAC	5 mA	200 W	13.78 in	4.134 "	350 mm	105 mm	3.268 in	83 mm	10 V	2 mA	0.5% + 1 count
TDK-LAMBDA Z10-20-LAN-U	Bench (AC to DC)	5 mV	Digital	LAN Programmable RS232 RS485 USB Interface	1	20 A	4	2 mV	1.9 kg	4.2 lbs	265 VAC	85 VAC	5 mA	200 W			13.78 "	2.756 "		3.268 "	10 V	2 mA	0.5% + 1 count	83 mm	70 mm	350 mm
TDK-LAMBDA Z10-20-L-U	Bench (AC to DC)	5 mV	Digital	Programmable RS232 RS485 USB Interface	1	20 A	4	2 mV	2.4 kg	5.3 lbs	265 VAC	85 VAC	5 mA	200 W	13.78 in	4.134 "	350 mm	105 mm	3.268 in	83 mm	10 V	2 mA	0.5% + 1 count
TDK-LAMBDA Z10-20-IS420-U	Bench (AC to DC)	5 mV	Digital	Programmable RS232 RS485 USB Interface	1	20 A	4	2 mV	2.4 kg	5.3 lbs	265 VAC	85 VAC	5 mA	200 W	13.78 in	4.134 "	350 mm	105 mm	3.268 in	83 mm	10 V	2 mA	0.5% + 1 count
TDK-LAMBDA Z10-20-U	Bench (AC to DC)	5 mV	Digital	Programmable RS232 RS485 USB Interface	1	20 A	4	2 mV	1.9 kg	4.2 lbs	265 VAC	85 VAC	5 mA	200 W			13.78 "	2.756 "		3.268 "	10 V	2 mA	0.5% + 1 count	83 mm	70 mm	350 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1904.90

Description

General part information

Z10-20 Series

0 ~ 10VDC Output Bench (AC to DC) Power Supply Digital 0 ~ 20A Output 200W Features LAN, Programmable, RS232, RS485 and USB Interface

Documents

Technical documentation and resources

Z+ Series Brochure

Datasheet

General Safety Inst

Datasheet
