DC0001/05-TG-A482K-0.1-0

Active

t-Global Technology

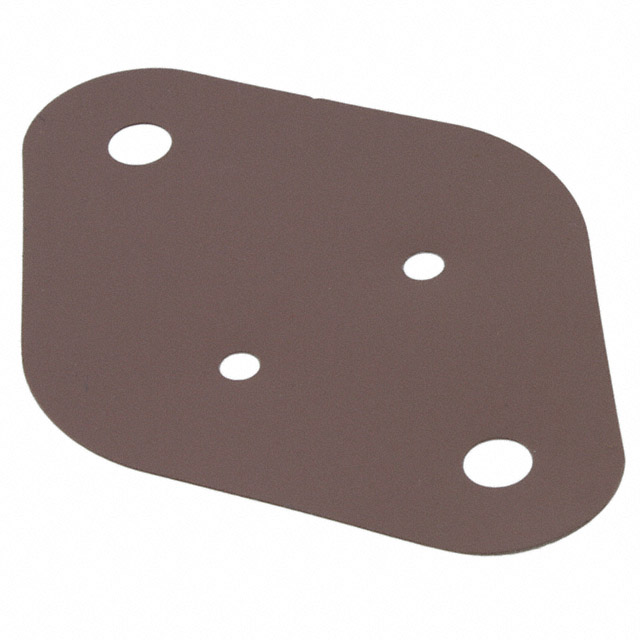

THERM PAD 41.91X28.96MM RED

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 41.91X28.96MM RED

Technical Specifications

Parameters and characteristics for this part

Part	Color	Shape	Usage	Shelf Life	Shelf Life Start	Material	Type	Outline [y]	Outline [x]	Thermal Conductivity	Thickness	Thickness	Adhesive	Backing, Carrier	Thickness [x]	Thickness [x]	Thickness [custom]	Thickness [custom]
t-Global Technology DC0001/05-TG-A482K-0.1-0	Red	Rhombus	TO-3	24 Months	Date of Purchase	Silicone	Die-Cut Pad Sheet	28.96 mm	41.91 mm	2.3 W/m-K	0.1 mm	0.0039 in
t-Global Technology DC0001/05-TI900-0.12-2A	White	Rhombus	TO-3	24 Months		Silicone	Die-Cut Pad Sheet	28.96 mm	41.91 mm	1.8 W/m-K			Adhesive - Both Sides	Viscose	0.005 in	0.127 mm
t-Global Technology DC0001/05-TG-A486G-0.3-2A	Gray	Rhombus	TO-3	12 Months	Date of Purchase		Die-Cut Pad Sheet	28.96 mm	41.91 mm	6 W/m-K			Adhesive - Both Sides				0.305 mm	0.012 "
