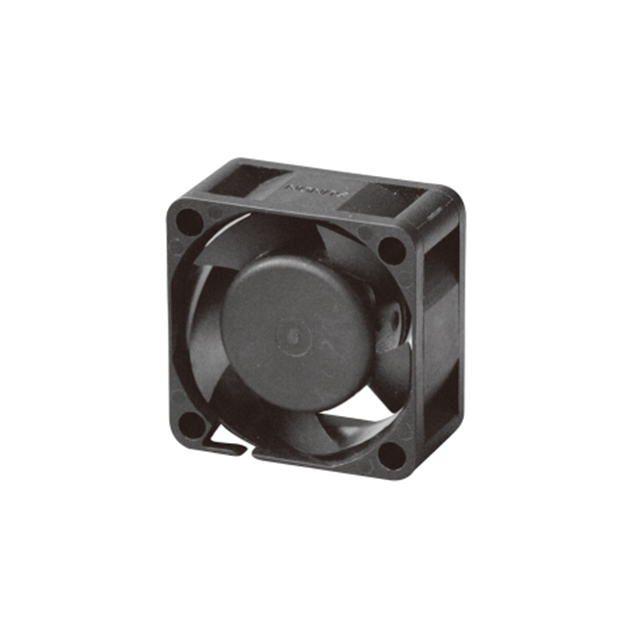

HA40201V4-1000U-A99

Active

Sunon Fans

FAN AXIAL 40X20MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 40X20MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	HA40201V4-1000U-A99

Air Flow	0.154 m³/min
Air Flow	5.5 CFM
Approval Agency	TUV, cUR, UL, CE
Current Rating (Amps)	31 mA
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	12.3 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	380 mW
RPM	4500 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.1 in H2O
Static Pressure	24.9 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	4.5 V
Weight	30.39 g
Weight	0.067 lb
Width [y]	20 mm

Part	Static Pressure	Static Pressure	Weight	Weight	Voltage - Rated	Current Rating (Amps)	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Width [y]	Approval Agency	Power (Watts)	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Features	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Noise	Fan Type	Material - Blade	RPM	Air Flow
Sunon Fans HA40201V4-1000U-G99	0.1 in H2O	24.9 Pa	0.068 lb	30.84 g	12 VDC	0.31 A	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	20 mm	CE cUR TUV UL	380 mW	40 mm	Square	40 mm	Auto Restart Speed Sensor (Tach)	4.5 V	13.8 VDC	0.154 mł/min	5.5 CFM	12.3 dB(A)	Tubeaxial	Polybutylene Terephthalate (PBT)	4500 RPM
Sunon Fans HA40201V4-1000U-A99	0.1 in H2O	24.9 Pa	0.067 lb	30.39 g	12 VDC	31 mA	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	20 mm	CE cUR TUV UL	380 mW	40 mm	Square	40 mm	Auto Restart	4.5 V	13.8 VDC	5.5 CFM		12.3 dB(A)	Tubeaxial	Polybutylene Terephthalate (PBT)	4500 RPM	0.154 m³/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Vapo-Bearing™ 5.5 CFM (0.154m³/min) 2 Wire Leads
