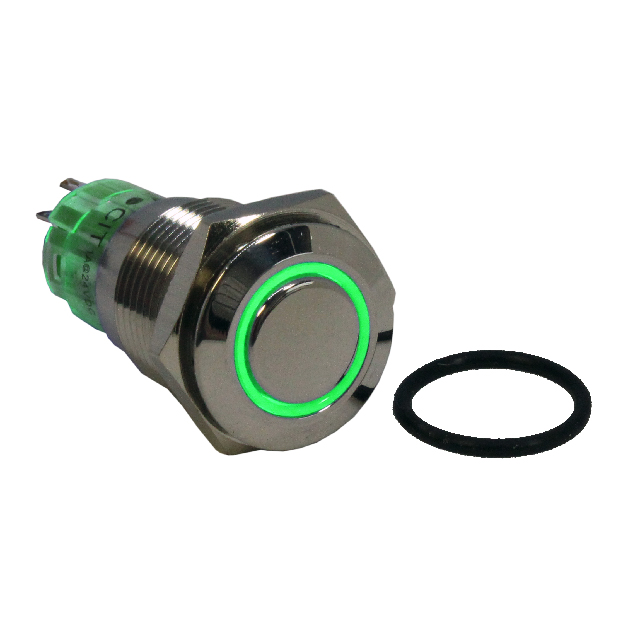

CH2NBSGNS

Active

CIT Relay and Switch

SWITCH PB DPDT 1A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB DPDT 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	CH2NBSGNS

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Electrical Life	30000 Cycles
Features	Stainless Steel
Illumination Type, Color	LED, Green
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Part	Color - Actuator/Cap	Switch Function	Voltage Rating - DC	Features	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Type	Mounting Type	Voltage Rating - AC	Circuit	Termination Style	Illumination Type, Color	Actuator Marking	Electrical Life	Panel Cutout Dimensions [diameter]	Actuator Type
CIT Relay and Switch CH2NBSRGNS	Silver	On-Mom	24 V	Stainless Steel	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Panel Mount Front	125 V	DPDT	Solder Lug	Green/Red LED	No Marking	30000 Cycles	16 mm	Button Flush Round
CIT Relay and Switch CH2NBSGNS	Silver	On-Mom	24 V	Stainless Steel	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Panel Mount Front	125 V	DPDT	Solder Lug	Green LED	No Marking	30000 Cycles	16 mm	Button Flush Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	40	$ 12.75

General part information

Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front
