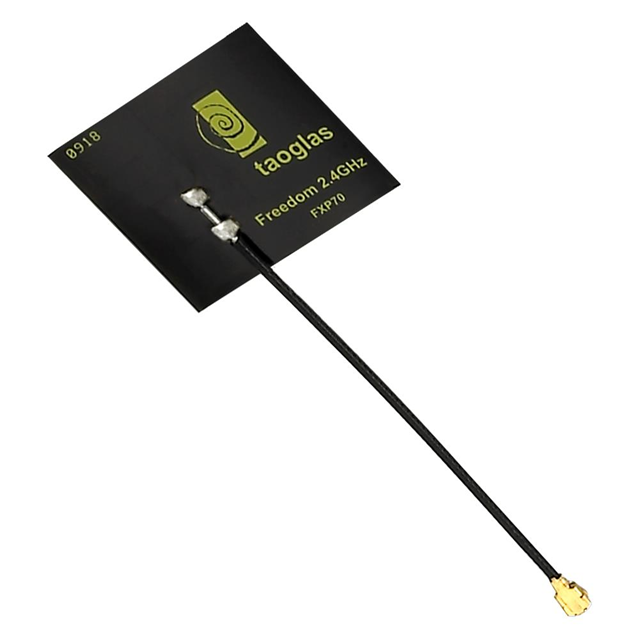

FXP70.07.0053A
ActiveTAOGLAS
RF ANTENNA, 2.4 TO 2.4835GHZ, PCB, 1.5DBI, 50 OHM, LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
FXP70.07.0053A
ActiveTAOGLAS
RF ANTENNA, 2.4 TO 2.4835GHZ, PCB, 1.5DBI, 50 OHM, LINEAR
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | FXP70.07.0053A |
|---|---|
| Antenna Type | Flat Patch |
| Applications | Bluetooth, WLAN, Zigbee™ |
| Frequency Range [Max] | 2.4835 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 1.1 dBi |
| Height (Max) | 0.08 mm |
| Height (Max) [Max] | 0.003 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max [Max] | 5 W |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | I-PEX MHF1, U.FL (UMCC) |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FXP70.07 Series
RF ANTENNA Bluetooth, WLAN, Zigbee™ Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
