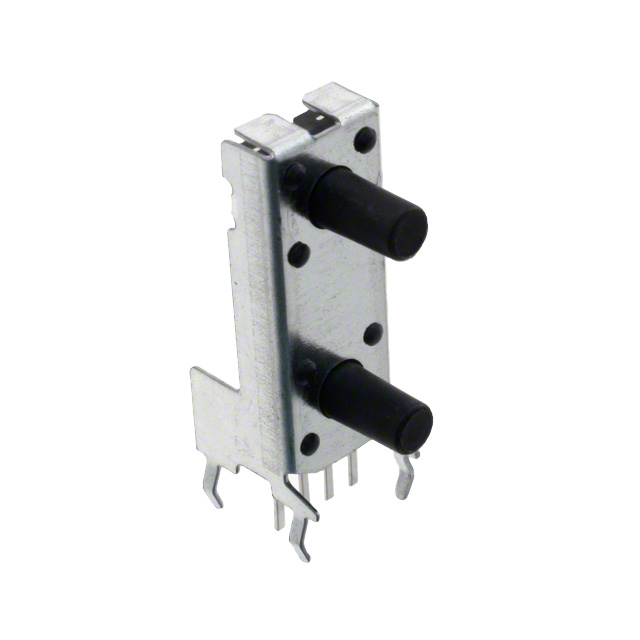

MJTP2205B
ActiveAPEM
SWITCH TACT SPSTX2 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MJTP2205B |
|---|---|
| Actuator Length, Right Angle | 8.35 mm |
| Actuator Material | Thermoplastic |
| Actuator Orientation | Side Actuated |
| Actuator Type | Dual |
| Circuit | SPST x 2 |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Features | Tactile Feedback |
| Illumination | Non-Illuminated |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline [x] | 8.4 mm |
| Outline [y] | 10.55 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.99 | |
| 10 | $ 0.86 | |||
| 25 | $ 0.82 | |||
| 182 | $ 0.72 | |||
| 364 | $ 0.69 | |||
| 546 | $ 0.67 | |||
| 1092 | $ 0.65 | |||
| 2548 | $ 0.61 | |||
| 5096 | $ 0.59 | |||
Description
General part information
MJTP22 Series
Tactile Switch SPST x 2 Side Actuated Through Hole, Right Angle
