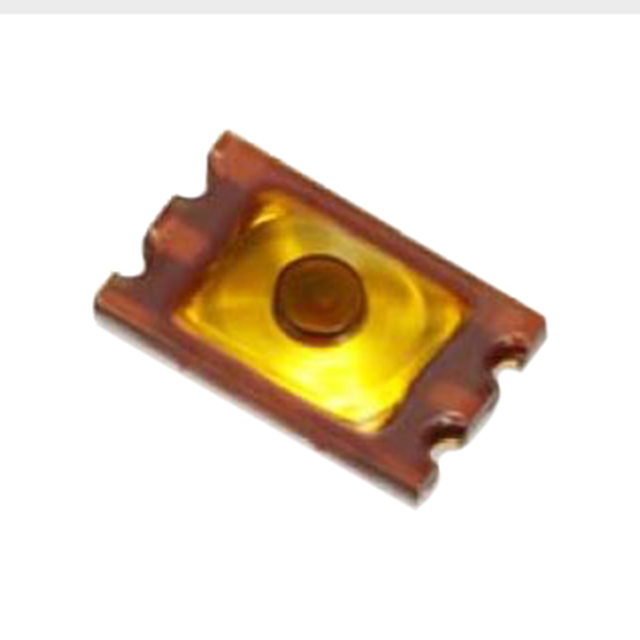

LS127C2D-T

Obsolete

Citizen Finedevice Co Ltd

SWITCH TACTILE SPST-NO 0.02A 12V

Search across all available documentation for this part.

Obsolete

Citizen Finedevice Co Ltd

SWITCH TACTILE SPST-NO 0.02A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	LS127C2D-T

Actuator Height off PCB, Vertical	0.6 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	12 VDC, 0.02 A
Illumination	Non-Illuminated
Mechanical Life	300000 Cycles
Mounting Type	Surface Mount
Outline [x]	3.2 mm
Outline [y]	2 mm
Switch Function	Off-Mom
Switch Travel	0.15 mm
Termination Style	SMD (SMT) Tab

Part	Switch Travel	Actuator Type	Actuator Orientation	Illumination	Contact Rating @ Voltage	Termination Style	Switch Function	Mechanical Life	Circuit	Outline [y]	Outline [x]	Actuator Height off PCB, Vertical	Mounting Type	Operating Force
Citizen Finedevice Co Ltd LS127C2D-T	0.15 mm	Standard	Top Actuated	Non-Illuminated	0.02 A 12 VDC	SMD (SMT) Tab	Off-Mom	300000 Cycles	SPST-NO	2 mm	3.2 mm	0.6 mm	Surface Mount
Citizen Finedevice Co Ltd LS127C4D2-T	0.15 mm	Standard	Top Actuated	Non-Illuminated	0.02 A 12 VDC	SMD (SMT) Tab	Off-Mom	300000 Cycles	SPST-NO	2 mm	3.2 mm	0.6 mm	Surface Mount	240 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
