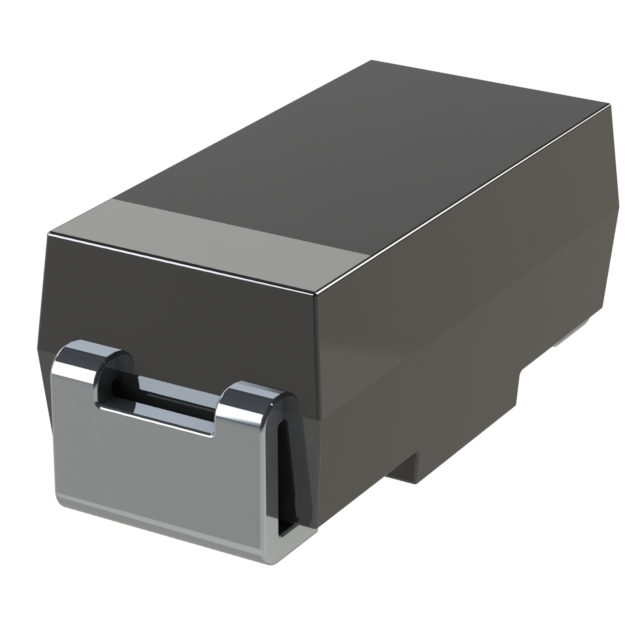

TCJS226M006R0400E

Active

Kyocera AVX

CAP TANT POLY 22UF 6.3V 1206

Search across all available documentation for this part.

Active

Kyocera AVX

CAP TANT POLY 22UF 6.3V 1206

Technical Specifications

Parameters and characteristics for this part

Specification	TCJS226M006R0400E

Capacitance	22 µF
ESR (Equivalent Series Resistance)	400 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	S
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Voltage - Rated	Tolerance	Manufacturer Size Code	Capacitance	Type	Package / Case	Lifetime @ Temp.	Features	Operating Temperature [Max]	Operating Temperature [Min]
Kyocera AVX TCJS226M006R0400E	Surface Mount	0.063 in	1.6 mm	0.126 "	3.2 mm	1.2 mm	0.047 in	400 mOhm	6.3 V	20 %	S	22 µF	Molded	1206 (3216 Metric)	2000 Hrs	General Purpose	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 0.54

General part information

22 µF Molded Tantalum Polymer Capacitor 6.3 V 1206 (3216 Metric) 400mOhm @ 100kHz
