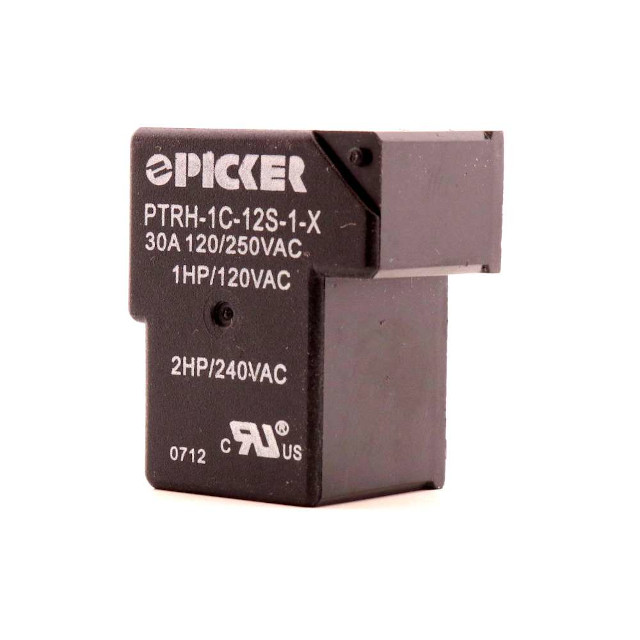

PTRH-1C-12S-1-X
ActivePicker Components
RELAY GEN PURPOSE SPDT 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTRH-1C-12S-1-X
ActivePicker Components
RELAY GEN PURPOSE SPDT 30A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTRH-1C-12S-1-X |
|---|---|
| Approval Agency | cUL, cURus, UL |
| Coil Current | 80 mA |
| Coil Insulation | Class B |
| Coil Resistance | 150 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 30 A |
| Load - Max Switching | 3300 W, 9000 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 110 VDC, 300 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.30 | |
| 10 | $ 2.01 | |||
| 25 | $ 1.91 | |||
| 50 | $ 1.83 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.66 | |||
| 500 | $ 1.60 | |||
| 1000 | $ 1.53 | |||
| 5000 | $ 1.40 | |||
Description
General part information
PTRH-1C Series
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
