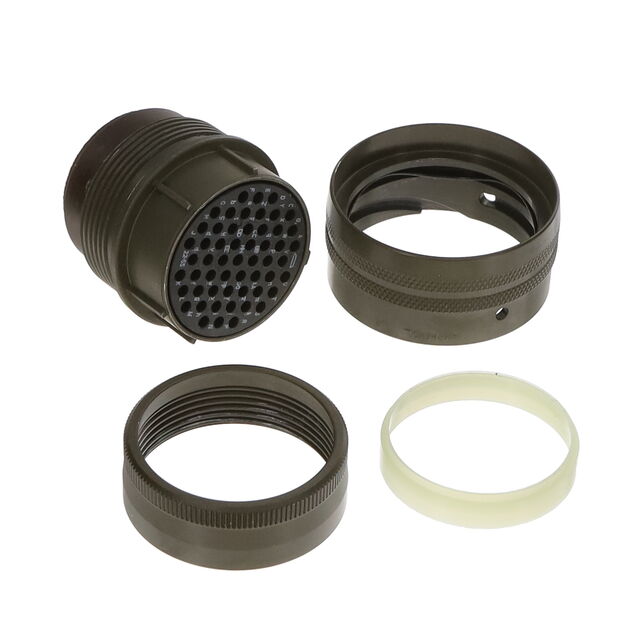

MS3126E22-55S(LC)

Active

Amphenol Industrial Operations

PLUG

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

PLUG

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Type	Number of Positions	Insert Material	Qualification	Contact Size	Shell Finish	Primary Material	Ingress Protection	Shell Material	Housing Color	Grade	Shielding	Connector Type	Mounting Type	Orientation	Note	Color	Contact Finish - Mating	Voltage Rating	Contact Material	Applications	Backshell Material, Plating	Termination	Current Rating (Amps)
Amphenol Industrial Operations MS3126E22-21P(LC)
Amphenol Industrial Operations MS3126E22-55S(LC)	Bayonet Lock	For Female Sockets	Backshell Coupling Nut	-55 °C	125 °C	Circular	55	22	Crimp	55 positions	Neoprene	MIL-DTL-26482 Series I	20	Chromate over Cadmium	Metal	Environment Resistant	Aluminum	Olive Drab	Military	Unshielded	Plug Housing	Free Hanging (In-Line)	N	Contacts Not Included
Amphenol Industrial Operations MS3126E22-55PX	Bayonet Lock		Backshell	-55 °C	125 °C		55	22		55 positions	Neoprene	MIL-DTL-26482 Series I		Olive Drab Chromate over Cadmium	Metal	Environment Resistant	Aluminum		Military	Unshielded	Male Pins Plug	Free Hanging (In-Line)	X		Olive Drab	Gold	600 VAC	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Chromate over Cadmium	Crimp	7.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

55 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
