325010-02-0

Active

Curtis Industries

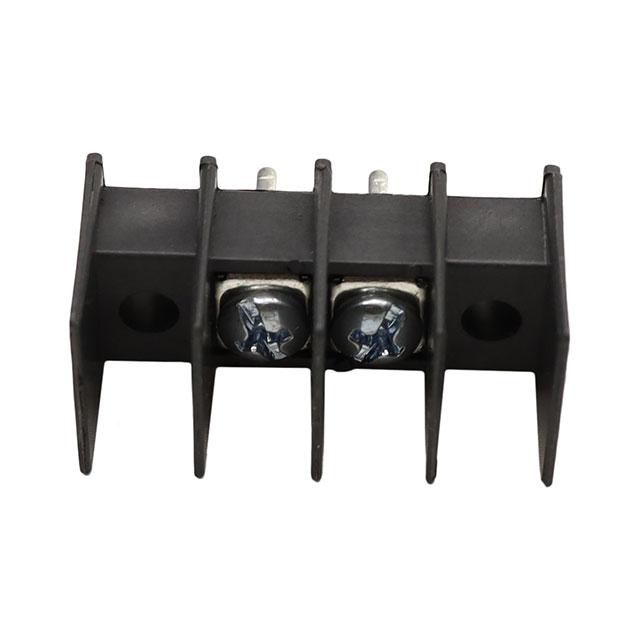

CONN BARRIER STRIP 2CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

325010-02-0

Active

Curtis Industries

CONN BARRIER STRIP 2CIRC 0.325"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325010-02-0

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	2
Number of Rows	1
Number of Wire Entries	2
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325010 Series

Part	Barrier Type	Number of Rows	Terminal Screw Material	Top Termination	Number of Wire Entries [custom]	Voltage Rating	Material Flammability Rating	Bottom Termination	Terminal Block Type	Features	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature	Material - Insulation	Number of Circuits	Current Rating (Amps)	Mounting Type	Pitch [x]	Pitch [x]	Number of Wire Entries
Curtis Industries 325010-01-0	2 Wall (Dual)	1	Steel	Screws	1	300 VDC	UL94 V-0	PC Pin	Barrier Block	Flange	14 AWG	22 AWG	105 C	Polypropylene (PP)	1	15 A	Chassis Panel Through Hole
Curtis Industries 325010-02-0	2 Wall (Dual)	1	Steel	Screws		300 VDC	UL94 V-0	PC Pin	Barrier Block	Flange	14 AWG	22 AWG	105 C	Polypropylene (PP)	2	15 A	Chassis Panel Through Hole	8.26 mm	0.325 in	2
Curtis Industries 325010-12-0	2 Wall (Dual)	1	Steel	Screws		300 VDC	UL94 V-0	PC Pin	Barrier Block	Flange	14 AWG	22 AWG	105 C	Polypropylene (PP)	12	15 A	Chassis Panel Through Hole	8.26 mm	0.325 in	12
Curtis Industries 325010-07-0	2 Wall (Dual)	1	Steel	Screws		300 VDC	UL94 V-0	PC Pin	Barrier Block	Flange	14 AWG	22 AWG	105 C	Polypropylene (PP)	7	15 A	Chassis Panel Through Hole	8.26 mm	0.325 in	7
Curtis Industries 325010-16-0	2 Wall (Dual)	1	Steel	Screws		300 VDC	UL94 V-0	PC Pin	Barrier Block	Flange	14 AWG	22 AWG	105 C	Polypropylene (PP)	16	15 A	Chassis Panel Through Hole	8.26 mm	0.325 in	16
Curtis Industries 325010-05-0	2 Wall (Dual)	1	Steel	Screws		300 VDC	UL94 V-0	PC Pin	Barrier Block	Flange	14 AWG	22 AWG	105 C	Polypropylene (PP)	5	15 A	Chassis Panel Through Hole	8.26 mm	0.325 in	5
Curtis Industries 325010-24-0	2 Wall (Dual)	1	Steel	Screws		300 VDC	UL94 V-0	PC Pin	Barrier Block	Flange	14 AWG	22 AWG	105 C	Polypropylene (PP)	24	15 A	Chassis Panel Through Hole	8.26 mm	0.325 in
Curtis Industries 325010-03-0	2 Wall (Dual)	1	Steel	Screws		300 VDC	UL94 V-0	PC Pin	Barrier Block	Flange	14 AWG	22 AWG	105 C	Polypropylene (PP)	3	15 A	Chassis Panel Through Hole	8.26 mm	0.325 in	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.17
		10	$ 1.64
		30	$ 1.52

Description

General part information

325010 Series

2 Circuit 0.325" (8.26mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Terminal Blocks Catalog

Datasheet
