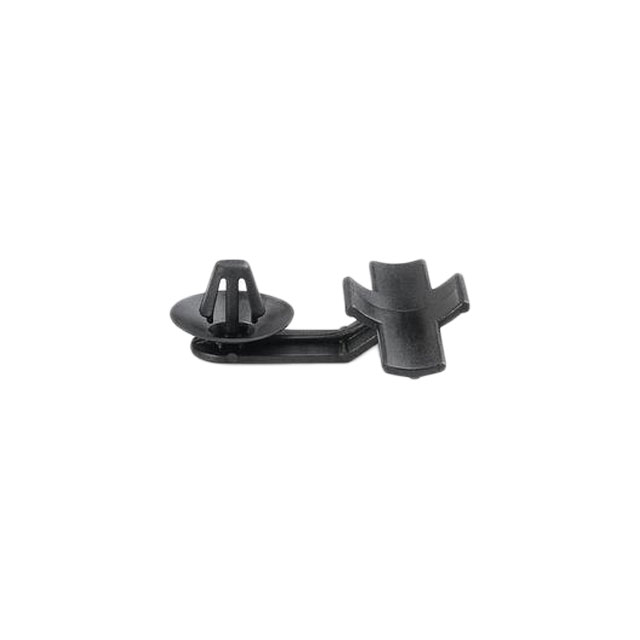

155-01600

Obsolete

HELLERMANNTYTON

CBL CLIP BUNDLING BLACK ARROW

Search across all available documentation for this part.

Obsolete

HELLERMANNTYTON

CBL CLIP BUNDLING BLACK ARROW

Technical Specifications

Parameters and characteristics for this part

Specification	155-01600

Bundle Center to Mounting Center [x]	0.984 in, 25 mm
Color	Black
Features	Impact Resistant
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Cupped, Arrowhead
Panel Hole Size [Max]	6.8 mm, 0.268 in
Panel Hole Size [Min]	6.5 mm, 0.255 in
Panel Thickness [Max]	0.063 in
Panel Thickness [Max]	1.6 mm
Panel Thickness [Min]	0.016 in
Panel Thickness [Min]	0.4 mm
Type	Bundling, Clip

Part	Features	Panel Hole Size [Max]	Panel Hole Size [Min]	Material	Type	Material Flammability Rating	Mounting Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Color	Bundle Center to Mounting Center [x]
HELLERMANNTYTON 155-01600	Impact Resistant	0.268 in 6.8 mm	0.255 in 6.5 mm	Polyamide (PA66) Nylon 6/6	Bundling Clip	UL94 HB	Arrowhead Cupped	0.063 in	0.016 in	1.6 mm	0.4 mm	Black	0.984 in 25 mm
