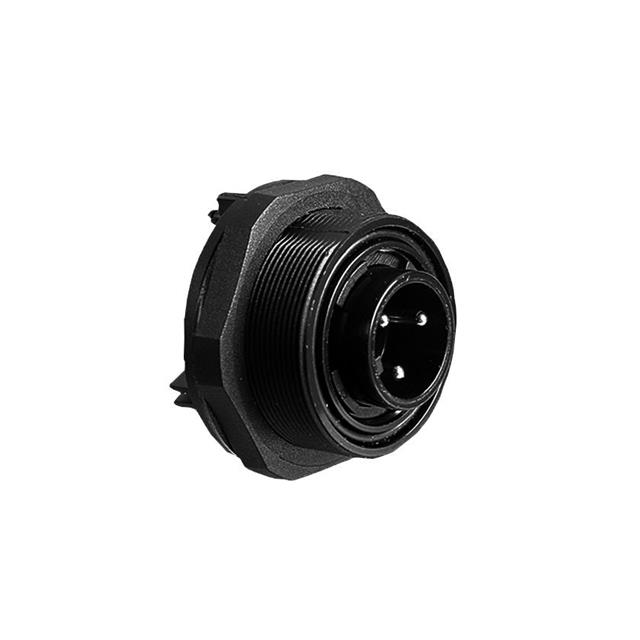

PX0708/P/03

Active

BULGIN LIMITED

CONN RCPT MALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PX0708/P/03

Active

BULGIN LIMITED

CONN RCPT MALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0708/P/03

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Current Rating (Amps)	12 A
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Crimp
Voltage Rating	277 VAC/DC

PX0708 Series

Part	Contact Type	Connector Type	Note	Number of Positions	Orientation	Mounting Feature	Shielding	Primary Material	Material Flammability Rating	Includes	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Insert Material	Shell Material	Contact Shape	Type	Termination	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish - Mating	Color	Contact Material
BULGIN LIMITED PX0708/P/25	Crimp and Solder Cup	Receptacle Housing	Contacts Not Included	25	Keyed	Bulkhead - Front Side Nut	Unshielded	Plastic	UL94 HB	1 Connector 1 Locking Ring 1 Nut 1 O-Ring 1 Washer	Black	-20 C	70 °C	IP68 - Dust Tight Waterproof	Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)	Circular	For Male Pins
BULGIN LIMITED PX0708/P/03		Male Pins Receptacle			Keyed	Bulkhead - Front Side Nut	Unshielded	Plastic	UL94 HB			-20 C	70 °C	IP68 IP69K	Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)			Crimp	3	1	2	12 A	0.099 µm	3.9 µin	277 VAC/DC	Gold	Black
BULGIN LIMITED PX0708/P/12	Crimp and Solder Cup	Receptacle Housing	Contacts Not Included	12	Keyed	Bulkhead - Front Side Nut	Unshielded	Plastic	UL94 HB	1 Connector 1 Locking Ring 1 Nut 1 O-Ring 1 Washer	Black	-20 C	70 °C	IP68 - Dust Tight Waterproof	Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)	Circular	For Male Pins
BULGIN LIMITED PX0708/P/09		Male Pins Receptacle		9	Keyed	Bulkhead - Front Side Nut	Unshielded	Plastic	UL94 HB			-20 C	70 °C	IP68 IP69K	Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)			Crimp				5 A			150 VAC		Black	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PX0708 Series

3 (2 Power + PE) Position Circular Connector Receptacle, Male Pins Crimp
