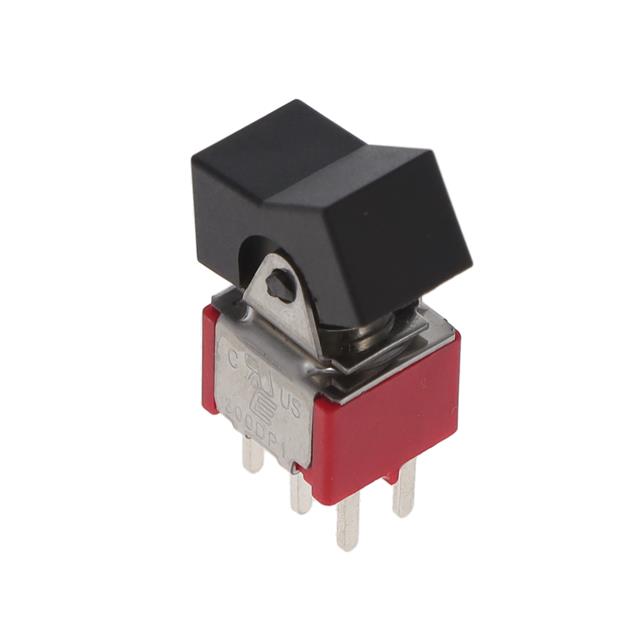

300DP1J1M2QE

Active

E-Switch

SWITCH ROCKER DPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

300DP1J1M2QE

Active

E-Switch

SWITCH ROCKER DPDT 5A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	300DP1J1M2QE

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	5 A
Electrical Life	40000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

300SP1J1 Series

Part	Circuit	Switch Function	Actuator Type	Electrical Life	Features	Current Rating (Amps)	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Color - Actuator/Cap	Voltage Rating - DC	Voltage Rating - AC
E-Switch 300SP1J1VS2RE	SPDT	On-On	Concave (Standard V)	40000 Cycles	Epoxy Sealed Terminals	0.4 VA	PC Pin	Through Hole	-30 ░C	85 °C	No Marking	Black	20 V	20 V
E-Switch 300SP4J1BLKM6RE	SPDT	Mom-Off-Mom	Concave (Standard V)	40000 Cycles	Epoxy Sealed Terminals	0.4 VA	PC Pin	Through Hole Right Angle	-30 ░C	85 °C	No Marking	Black	20 V	20 V
E-Switch 300SP2J1BLKM7RE	SPDT	On-Mom	Concave (Standard V)	40000 Cycles	Epoxy Sealed Terminals	0.4 VA	PC Pin	Right Angle Through Hole Vertical	-30 ░C	85 °C	No Marking	Black	20 V	20 V
E-Switch 300SP3J1BLKM6RE	SPDT	On-Off-On	Concave (Standard V)	40000 Cycles	Epoxy Sealed Terminals	0.4 VA	PC Pin	Through Hole Right Angle	-30 ░C	85 °C	No Marking	Black	20 V	20 V
E-Switch 300SP1J1BLKM7RE	SPDT	On-On	Concave (Standard V)	40000 Cycles	Epoxy Sealed Terminals	0.4 VA	PC Pin	Right Angle Through Hole Vertical	-30 ░C	85 °C	No Marking	Black	20 V	20 V
E-Switch 300SP2J1BLKM6QE	SPDT	On-Mom	Concave (Standard V)	40000 Cycles	Epoxy Sealed Terminals	5 A	PC Pin	Through Hole Right Angle	-30 ░C	85 °C	No Marking	Black	28 V	120 V
E-Switch 300SP1J1BLKVS4QE	SPDT	On-On	Concave (Standard V)	40000 Cycles	Epoxy Sealed Terminals	5 A	PC Pin	Through Hole	-30 ░C	85 °C	No Marking	Black	28 V	120 V
E-Switch 300SP1J3BLKM51RE	SPDT	On-On	Concave (Standard V)	40000 Cycles	Epoxy Sealed Terminals	0.4 VA	PC Pin	Through Hole	-30 ░C	85 °C	No Marking	Black	20 V	20 V
E-Switch 300DP1J1M2QE	DPDT	On-On	Concave (Standard V)	40000 Cycles	Epoxy Sealed Terminals	5 A	PC Pin	Through Hole	-30 ░C	85 °C	No Marking	Black	28 V	120 V
E-Switch 300SP4J2BLKM7QE	SPDT	Mom-Off-Mom	Paddle	40000 Cycles	Epoxy Sealed Terminals	5 A	PC Pin	Right Angle Through Hole Vertical	-30 ░C	85 °C	No Marking	Black	28 V	120 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.42
		10	$ 3.94
		25	$ 3.74
		50	$ 3.61
		100	$ 3.42
		270	$ 3.27
		540	$ 3.00
		1080	$ 2.87

Description

General part information

300SP1J1 Series

Rocker Switch DPDT 5A (AC/DC) 120 V Through Hole

Documents

Technical documentation and resources

No documents available
