A 14-LC-TR

Active

Assmann WSW Components

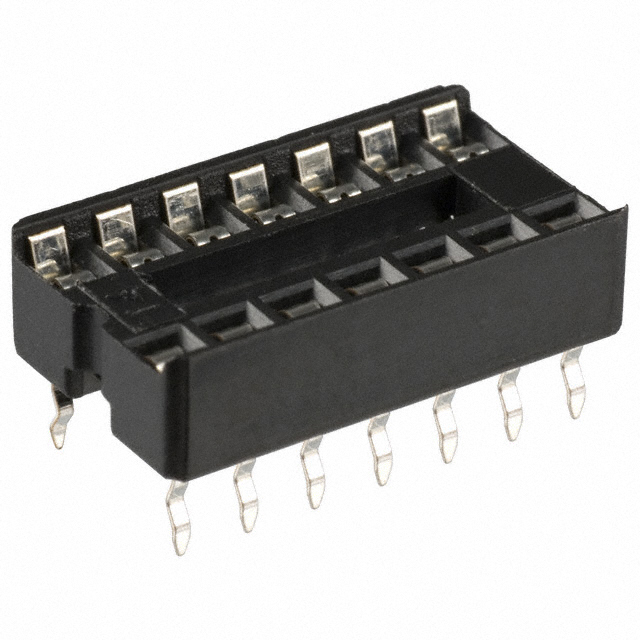

CONN IC DIP SOCKET 14POS TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN IC DIP SOCKET 14POS TIN

Technical Specifications

Parameters and characteristics for this part

Specification	A 14-LC-TR

Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	30 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	14
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.15 mm
Termination Post Length	0.124 in
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Type	Type	Type	Number of Positions or Pins (Grid)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material - Post	Termination	Contact Resistance	Termination Post Length	Termination Post Length	Housing Material	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Material - Mating	Features	Mounting Type	Pitch - Post	Pitch - Post	Contact Finish - Post	Material Flammability Rating
Assmann WSW Components A 14-LC-TR	0.3 "	7.62 mm	DIP	14	85 °C	-55 °C	Phosphor Bronze	Solder	30 mOhm	3.15 mm	0.124 in	Polybutylene Terephthalate (PBT)	1 A	0.1 in	2.54 mm	Phosphor Bronze	Open Frame	Through Hole	2.54 mm	0.1 in	Tin	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
