302-R101

Active

On Shore Technology Inc.

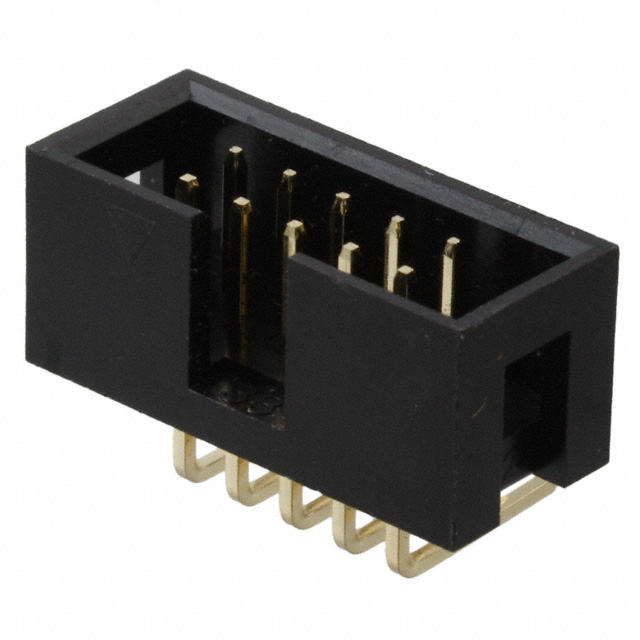

CONN HEADER R/A 10POS 2.54MM

Search across all available documentation for this part.

Active

On Shore Technology Inc.

CONN HEADER R/A 10POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	302-R101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.25 µin
Contact Finish Thickness - Post	0.032 µm
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.358 in
Insulation Height	9.1 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Insulation Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Shape	Fastening Type	Voltage Rating	Style	Features	Number of Positions Loaded	Contact Material	Termination	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Type	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows
On Shore Technology Inc. 302-R101	1.25 µin	0.032 µm	Shrouded - 4 Wall	Polyester Glass Filled	Gold	-40 °C	105 ░C	Header	Through Hole Right Angle	UL94 V-0	0.358 in	9.1 mm	10	0.122 "	3.1 mm	Gold	Flash	Square	Push-Pull	250 VDC	Board to Cable/Wire	Keying Slot	All	Brass	Solder	Black	0.1 in	2.54 mm	Male Pin	3 A	2.54 mm	0.1 in	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
