060-1426-04

Active

Honeywell Sensing and Productivity Solutions T&M

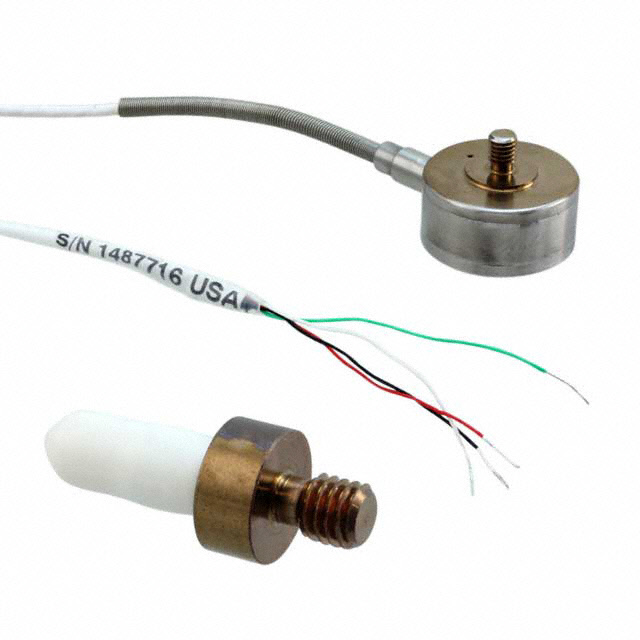

SENSOR FORCE LOAD CELL 10LBS

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions T&M

SENSOR FORCE LOAD CELL 10LBS

Technical Specifications

Parameters and characteristics for this part

Specification	060-1426-04

Accuracy	0.15 %
Actuator Style/Size	Stud, 6-32 UNC
Actuator Type	Diaphragm
Compensated Temperature [Max]	71 °C
Compensated Temperature [Min]	15 °C
Includes	Sensor
Operating Force	10 lbs
Operating Force	4.54 kgf
Operating Temperature [Max]	121 °C
Operating Temperature [Min]	-54 °C
Sensor Type	Load Cell

Part	Includes	Operating Force	Operating Force	Sensor Type	Compensated Temperature [Max]	Compensated Temperature [Min]	Actuator Type	Actuator Style/Size	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy
Honeywell Sensing and Productivity Solutions T&M 060-1426-02	Sensor	2.2 lbs	1 kgf	Load Cell	71 °C	15 °C	Diaphragm	6-32 UNC Stud	121 °C	-54 °C	0.15 %
Honeywell Sensing and Productivity Solutions T&M 060-1426-04	Sensor	10 lbs	4.54 kgf	Load Cell	71 °C	15 °C	Diaphragm	6-32 UNC Stud	121 °C	-54 °C	0.15 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR FORCE LOAD CELL 10LBS
