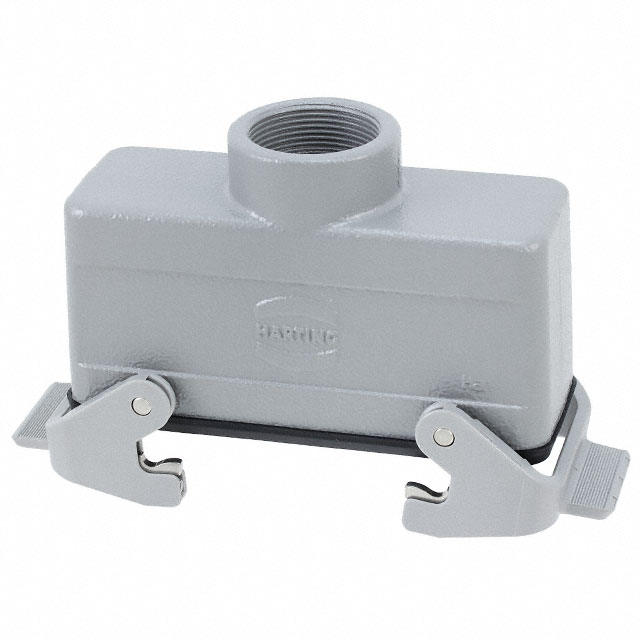

HEAVY DUTY CONNECTOR, COUPLER, M32 TOP ENTRY, LOW PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER

Deep-Dive with AI

Search across all available documentation for this part.

Documents19300241732 Prod Declaration Cert Datasheet +2

19300241732

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, COUPLER, M32 TOP ENTRY, LOW PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER

Deep-Dive with AI

Documents19300241732 Prod Declaration Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300241732

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.26 "
Size / Dimension [z]	57.4 mm
Style	Bottom Entry
Thread Size	M32

19300241 Series

Part	Lock Location	Style	Housing Material	Thread Size	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Housing Color	Ingress Protection	Features
HARTING Technology Group 19300241206
HARTING Technology Group 19300241141	Locking Clip (1) on Base Bottom	Top Entry	Aluminum Die Cast	M32	80.4 mm	3.165 in	2.776 "	70.5 mm	168.5 mm	6.634 in	24 B	Hood - Panel Mount	125 °C	-40 °C	Powder Coated	Gray	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19300241732	Locking Clip (2) on Hood Top	Bottom Entry	Aluminum Die Cast	M32	57.4 mm	2.26 "	1.693 in	43 mm	120 mm	4.724 "	24 B	Hood - Coupling	125 °C	-40 °C	Powder Coated	Gray	IP65 - Dust Tight Water Resistant	Cable to Cable
HARTING Technology Group 19300241422	Locking Clip (2) on Base Bottom	Top Entry	Aluminum Die Cast	M32	71 mm	2.795 in	1.693 in	43 mm	120 mm	4.724 "	24 B	Hood	125 °C	-40 °C	Powder Coated	Gray	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19300241531	Locking Clip (2) on Hood	Side Entry	Aluminum Die Cast	M25	62.5 mm	2.461 in	1.693 in	43 mm	120 mm	4.724 "	24 B	Hood	125 °C	-40 °C	Powder Coated	Gray	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19300241296	Locking Clip (1) on Base Bottom	Side Entry	Aluminum Die Cast	M25	56 mm	2.205 in	2.244 "	57 mm	144 mm	5.669 "	24 B	Base - Box Mount	125 °C	-40 °C	Powder Coated	Gray	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19300241121	Locking Clip (2) on Hood	Top Entry	Aluminum Die Cast	M32	80.4 mm	3.165 in	2.776 "	70.5 mm	168.5 mm	6.634 in	24 B	Hood - Panel Mount	125 °C	-40 °C	Powder Coated	Gray	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19300241226	Locking Clip (2) on Hood	Side Entry	Aluminum Die Cast	M25	2.197 in 55.8 mm			2.244 " 57 mm	5.669 in 144 mm		24 B	Base - Box Mount	125 °C	-40 °C	Powder Coated	Gray	IP65 - Dust Tight Water Resistant	Cover
HARTING Technology Group 19300241752	Locking Clip (1) on Hood Top	Bottom Entry	Aluminum Die Cast	M32	57.4 mm	2.26 "	1.693 in	43 mm	120 mm	4.724 "	24 B	Hood - Coupling	125 °C	-40 °C	Powder Coated	Gray	IP65 - Dust Tight Water Resistant	Cable to Cable
HARTING Technology Group 19300241291	Locking Clip (1) on Base Bottom	Side Entry	Aluminum Die Cast	M25	2.197 in 55.8 mm			2.244 " 57 mm	5.669 in 144 mm		24 B	Base - Box Mount	125 °C	-40 °C	Powder Coated	Gray	IP65 - Dust Tight Water Resistant	Feed Through
