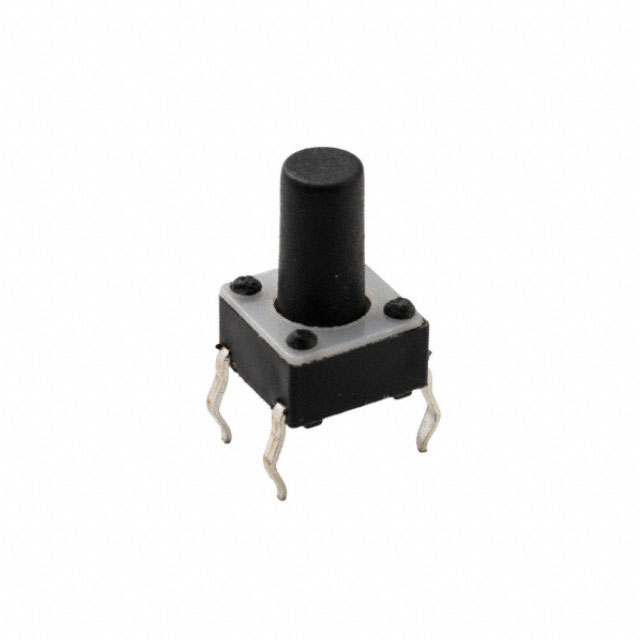

RTS-1105C-NL

Active

RDI, Inc.

TACT SWITCH

Search across all available documentation for this part.

Active

RDI, Inc.

TACT SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	RTS-1105C-NL

Actuator Height off PCB, Vertical	9.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	120 gf
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Circuit	Switch Function	Mounting Type	Actuator Orientation	Outline [y]	Outline [x]	Switch Travel	Actuator Height off PCB, Vertical	Illumination	Actuator Type	Operating Force	Contact Rating @ Voltage	Termination Style
RDI, Inc. RTS-1105C-NL	SPST-NO	Off-Mom	Through Hole	Top Actuated	6 mm	6 mm	0.25 mm	9.5 mm	Non-Illuminated	Standard	120 gf	0.05 A 12 VDC	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
