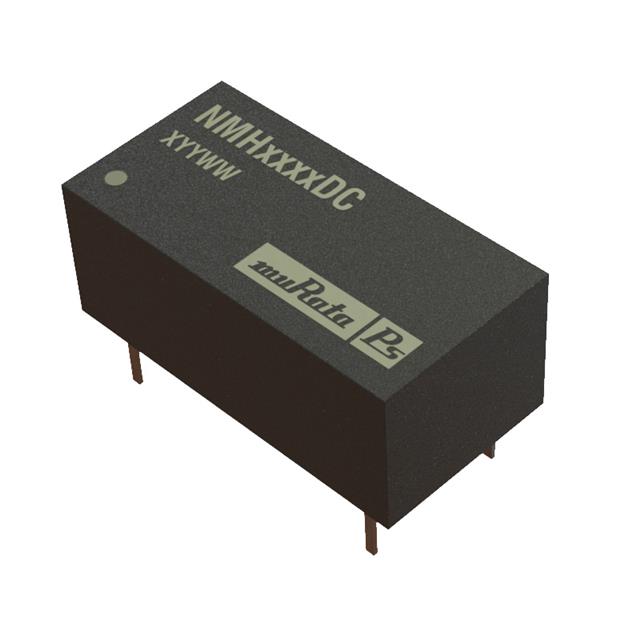

NMH0515DC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, 1:1, 2 W, 2 OUTPUT, 15 V, 67 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +1

NMH0515DC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, 1:1, 2 W, 2 OUTPUT, 15 V, 67 MA

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NMH0515DC

Applications	ITE (Commercial)
Current - Output (Max)	67 mA
Current - Output (Max)	67 mA
Efficiency	84 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP Module, 6 Leads
Power (Watts)	2 W
Size / Dimension [x]	19.6 mm
Size / Dimension [x]	0.77 in
Size / Dimension [y]	0.39 "
Size / Dimension [y]	9.9 mm
Size / Dimension [z]	0.3 "
Size / Dimension [z]	7.6 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

NMH05 Series

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Applications	Power (Watts)	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Output 2	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. NMH0509SC	Isolated Module	85 °C	-40 °C	2	5.5 V	ITE (Commercial)	2 W	Through Hole	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	81 %	111 mA	111 mA	1000 V	-9 V	7-SIP Module 5 Leads	4.5 V	9 V
Murata Power Solutions Inc. NMH0505SC	Isolated Module	85 °C	-40 °C	2	5.5 V	ITE (Commercial)	2 W	Through Hole	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	80 %			1000 V	-5 V	7-SIP Module 5 Leads	4.5 V	5 V
Murata Power Solutions Inc. NMH0509DC	Isolated Module	85 °C	-40 °C	2	5.5 V	ITE (Commercial)	2 W	Through Hole	19.6 mm	0.77 in	0.39 "	7.6 mm	0.3 "	9.9 mm	81 %	111 mA	111 mA	1000 V	-9 V	14-DIP Module (300 mil 6 Leads)	4.5 V	9 V
Murata Power Solutions Inc. NMH0505DC	Isolated Module	85 °C	-40 °C	2	5.5 V	ITE (Commercial)	2 W	Through Hole	19.6 mm	0.77 in	0.39 "	7.6 mm	0.3 "	9.9 mm	80 %			1000 V	-5 V	14-DIP Module (300 mil 6 Leads)	4.5 V	5 V
Murata Power Solutions Inc. NMH0515DC	Isolated Module	85 °C	-40 °C	2	5.5 V	ITE (Commercial)	2 W	Through Hole	19.6 mm	0.77 in	0.39 "	7.6 mm	0.3 "	9.9 mm	84 %			1000 V	-15 V	14-DIP Module 6 Leads	4.5 V	15 V	67 mA	67 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 13.20
		5	$ 13.13
		10	$ 13.04
		25	$ 12.90
		50	$ 12.58
		100	$ 11.95
		250	$ 11.18
		500	$ 10.43
		1000	$ 9.77
Newark	Each	25	$ 14.23
		50	$ 13.89
		100	$ 13.24

Description

General part information

NMH05 Series

The NMH0515DC is a 2-output board-mount isolated DC to DC Converter for on-board point-of-use power systems. The NMH series 2W industrial temperature range DC/DC converter is standard building block that is ideally suited for providing dual rail supplies on single rail boards with the added benefit of galvanic isolation to reduce circuit noise. All of the rated power may be drawn from a single pin provided the total load does not exceed 2watts. Pin compatibility with the NMA 1watt series ensures minimal effort in upgrading distributed power systems.

Documents

Technical documentation and resources

Datasheet

3D Product Image EN

Datasheet

Product Change Notice EN

Datasheet
