HIF4C-24P-3.18W

LTB

Hirose Electric USA, Inc.

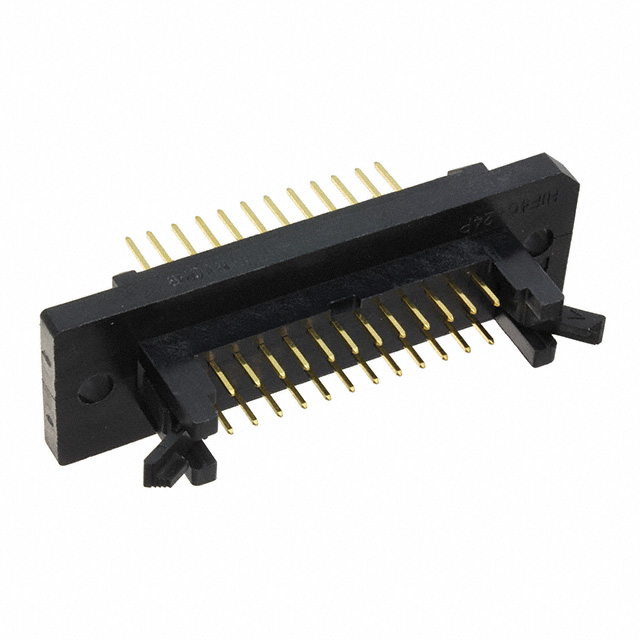

CONN HEADER R/A 24POS 3.18MM

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN HEADER R/A 24POS 3.18MM

Technical Specifications

Parameters and characteristics for this part

Specification	HIF4C-24P-3.18W

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.22 in
Contact Length - Mating	5.59 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating	0.25 in
Row Spacing - Mating	6.35 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Wire Wrap
Voltage Rating	300 VDC

Part	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Insulation Color	Contact Type	Number of Positions	Termination	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Shape	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Finish - Mating	Contact Material	Insulation Material	Connector Type	Shrouding
Hirose Electric USA, Inc. HIF4C-24P-3.18W	2	30 Áin	0.76 Ám	Board to Cable/Wire	Black	Male Pin	24	Wire Wrap	All	0.25 in	6.35 mm	UL94 V-0	Square	Panel Mount Right Angle Through Hole	3 A	85 °C	-55 °C	300 VDC	0.22 in	5.59 mm	Latch Lock/Eject Hooks	Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Header	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 13.56

General part information

Connector Header Panel Mount, Through Hole, Right Angle 24 position 0.125" (3.18mm)
