C1CXS-2636G
ActiveCW Industries
IDC CABLE - CKC26S/AE26G/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C1CXS-2636G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Cable |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Features | Polarizing Key |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Board In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.84 | |
| 10 | $ 6.78 | |||
| 25 | $ 6.12 | |||
| 50 | $ 5.67 | |||
| 100 | $ 5.27 | |||
| 250 | $ 4.79 | |||
| 500 | $ 4.47 | |||
| 1000 | $ 4.18 | |||
| 2500 | $ 3.89 | |||
Description
General part information
C1CXS-2 Series

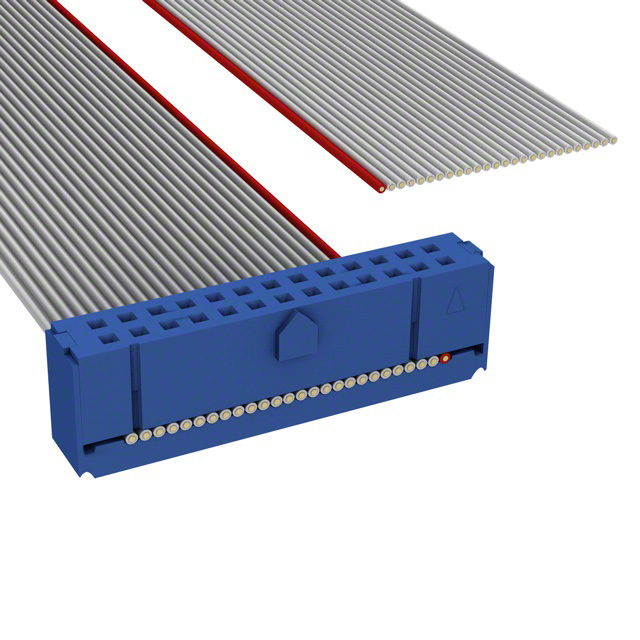

26 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
