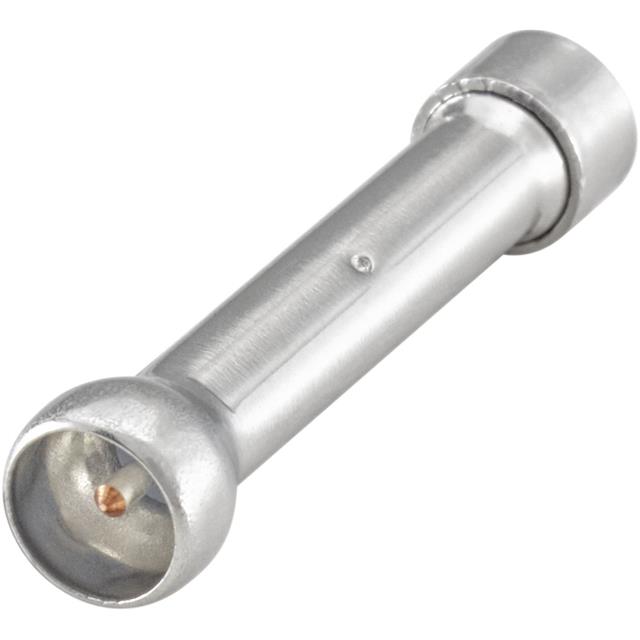

EBCS10D-S17N1

Active

Rosenberger

COAX ADAPT EBC TO EBC

Search across all available documentation for this part.

Active

Rosenberger

COAX ADAPT EBC TO EBC

Technical Specifications

Parameters and characteristics for this part

Specification	EBCS10D-S17N1

Adapter Series	EBC to EBC
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Copper Alloy
Center Contact Plating	Silver
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	EBC Jack, Male Pin
Convert To (Adapter End)	EBC Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	8 GHz
Impedance	50 Ohms
Mating Cycles	50
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Frequency - Max [Max]	Center Contact Material	Impedance	Body Material	Convert From (Adapter End)	Adapter Series	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Dielectric Material	Adapter Type	Mounting Type	Body Finish	Center Contact Plating	Conversion Type	Center Gender	Convert To (Adapter End)	Style	Fastening Type
Rosenberger EBCS10D-S17N1	8 GHz	Copper Alloy	50 Ohms	Brass	EBC Jack Male Pin	EBC to EBC	105 ░C	-55 °C	50	Polytetrafluoroethylene (PTFE)	Jack to Jack	Free Hanging (In-Line)	White Bronze	Silver	Same Series	Male to Male	EBC Jack Male Pin	Straight	Snap-On
Rosenberger EBCS10D-S09N1	8 GHz	Copper Alloy	50 Ohms	Brass	EBC Jack Male Pin	EBC to EBC	105 ░C	-55 °C	50	Polytetrafluoroethylene (PTFE)	Jack to Jack	Free Hanging (In-Line)	White Bronze	Silver	Same Series	Male to Male	EBC Jack Male Pin	Straight	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector EBC Jack, Male Pin To EBC Jack, Male Pin 50 Ohms

Technical documentation and resources

No documents available
