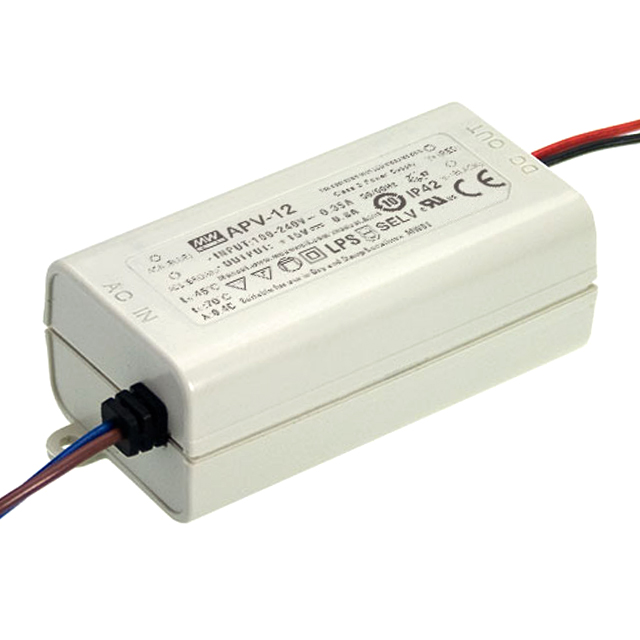

APV-12-15

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 15V 800MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APV-12-15

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 15V 800MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APV-12-15

Approval Agency	cURus, CE, ENEC, CB, CCC
Current - Output (Max) [Max]	800 mA
Features	SCP, OCP, OVP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Power (Watts)	12 W
Ratings	IP42
Size / Dimension [x]	3.03 in
Size / Dimension [x]	77 mm
Size / Dimension [y]	40 mm
Size / Dimension [y]	1.57 "
Size / Dimension [z]	29 mm
Size / Dimension [z]	1.14 "
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Voltage
Voltage - Input (Max) [Max]	264 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output	15 VDC

APV-12 Series

Part	Type	Voltage - Input (Max) [Max]	Topology	Power (Watts)	Voltage - Output	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Input (Min) [Min]	Mounting Type	Features	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Ratings	Approval Agency	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency
MEAN WELL USA Inc. APV-12-12	Constant Voltage	264 VAC	AC DC Converter	12 W	12 V	1 A	3750 V	90 VAC	Chassis Mount	OCP OVP SCP	1	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	IP42	CB CCC CE cURus ENEC	Wire Leads	70 °C	-30 ░C
MEAN WELL USA Inc. APV-12E-12	Constant Voltage	264 VAC	AC DC Converter	12 W	12 V	1 A	3750 V	180 VAC	Chassis Mount	OCP OVP SCP	1	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	IP42	CE ENEC	Wire Leads	70 °C	-30 ░C	81 %
MEAN WELL USA Inc. APV-12E-24	Constant Voltage	264 VAC	AC DC Converter	12 W	24 V	500 mA	3750 V	180 VAC	Chassis Mount	OCP OVP SCP	1	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	IP42	CE ENEC	Wire Leads	70 °C	-30 ░C	83 %
MEAN WELL USA Inc. APV-12-15	Constant Voltage	264 VAC	AC DC Converter	12 W	15 VDC	800 mA	3750 V	90 VAC	Chassis Mount	OCP OVP SCP	1	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	IP42	CB CCC CE cURus ENEC	Wire Leads	70 °C	-30 ░C
MEAN WELL USA Inc. APV-12-24	Constant Voltage	264 VAC	AC DC Converter	12 W	24 V	500 mA	3750 V	90 VAC	Chassis Mount	OCP OVP SCP	1	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	IP42	CB CCC CE cURus ENEC	Wire Leads	70 °C	-30 ░C	84 %
MEAN WELL USA Inc. APV-12-5	Constant Voltage	264 VAC	AC DC Converter	10 W	5 V	2 A	3750 V	90 VAC	Chassis Mount	OCP OVP SCP	1	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	IP42	CB CCC CE cURus ENEC	Wire Leads	70 °C	-30 ░C	76 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.61
		5	$ 7.05
		10	$ 6.82
		25	$ 6.54

Description

General part information

APV-12 Series

800mA 15V Constant Voltage LED Driver AC DC Converter Topology 1 Output
