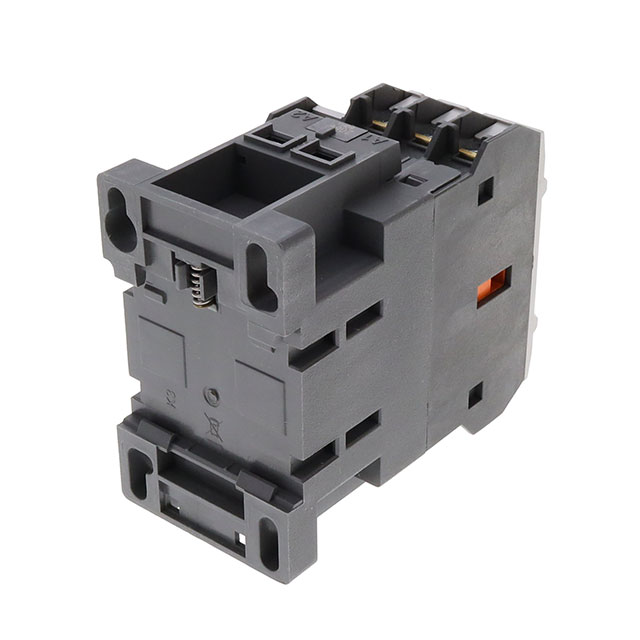

MC-22B-AC208V
ActiveAltech Corporation
CONTACTOR 3P22A 1 NO/1 NC 208VAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MC-22B-AC208V
ActiveAltech Corporation
CONTACTOR 3P22A 1 NO/1 NC 208VAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MC-22B-AC208V |
|---|---|
| Coil Current | 7.2 mA |
| Coil Power | 1.5 W |
| Coil Resistance | 28.84 kOhms |
| Coil Voltage | 208 VAC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 22 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 133 VAC |
| Must Release Voltage | 100 VAC |
| Operate Time | 22 ms |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -5 °C |
| Release Time | 19 ms |
| Switching Voltage | 600 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 65.76 | |
| 10 | $ 62.30 | |||
| 25 | $ 58.84 | |||
| 50 | $ 55.38 | |||
| 100 | $ 51.92 | |||
Description
General part information
MC-22 Series
CONTACTOR 3P22A 1 NO/1 NC 208VAC
