X93154UU8IZ-3

Obsolete

Renesas Electronics Corporation

IC DGTL POT 50KOHM 32TAP 8TDFN

Search across all available documentation for this part.

Obsolete

Renesas Electronics Corporation

IC DGTL POT 50KOHM 32TAP 8TDFN

Technical Specifications

Parameters and characteristics for this part

Specification	X93154UU8IZ-3

Configuration	Rheostat
Interface	Up/Down
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

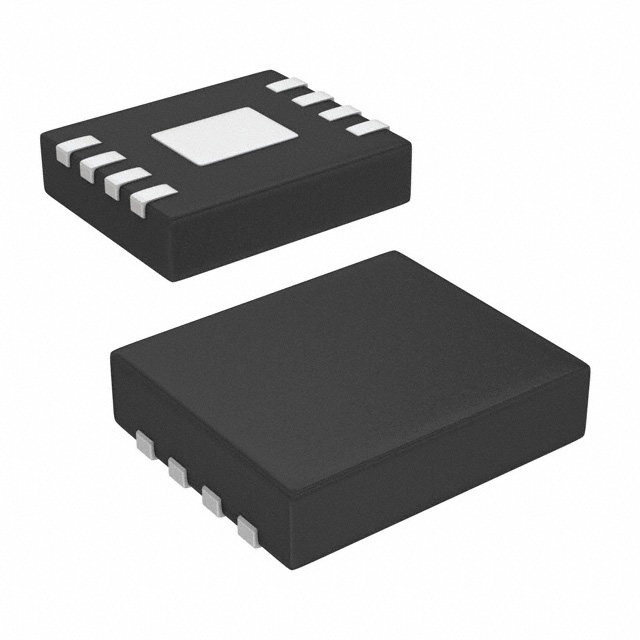

Package / Case	8-VFDFN Exposed Pad
Resistance - Wiper (Ohms) (Typ) [Max]	1000 Ohms
Resistance (Ohms)	50 kOhms
Supplier Device Package	8-TDFN
Supplier Device Package [x]	2.5
Supplier Device Package [y]	2
Taper	Linear
Temperature Coefficient (Typ)	35 ppm/°C
Tolerance	30 %
Voltage - Supply [Max]	3.3 V
Voltage - Supply [Min]	2.7 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Configuration	Resistance (Ohms)	Package / Case	Taper	Interface	Memory Type	Temperature Coefficient (Typ)	Number of Circuits	Resistance - Wiper (Ohms) (Typ) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Mounting Type	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Package / Case [custom]	Package / Case
Renesas Electronics Corporation X93154UU8IZ-3	2.7 V	3.3 V	Rheostat	50 kOhms	8-VFDFN Exposed Pad	Linear	Up/Down	Non-Volatile	35 ppm/°C	1	1000 Ohms	85 °C	-40 °C	30 %	Surface Mount	2	8-TDFN	2.5
Renesas Electronics Corporation X93154UM8IZ-3	2.7 V	3.3 V	Rheostat	50 kOhms	8-MSOP 8-TSSOP	Linear	Up/Down	Non-Volatile	35 ppm/°C	1	1000 Ohms	85 °C	-40 °C	30 %	Surface Mount		8-MSOP		0.118 in	3 mm
Renesas Electronics Corporation X93154UM8IZ-3T1	2.7 V	3.3 V	Rheostat	50 kOhms	8-MSOP 8-TSSOP	Linear	Up/Down	Non-Volatile	35 ppm/°C	1	1000 Ohms	85 °C	-40 °C	30 %	Surface Mount		8-MSOP		0.118 in	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Digital Potentiometer 50k Ohm 1 Circuit 32 Taps Up/Down (U/D, INC, CS) Interface 8-TDFN (2.5x2.0)
