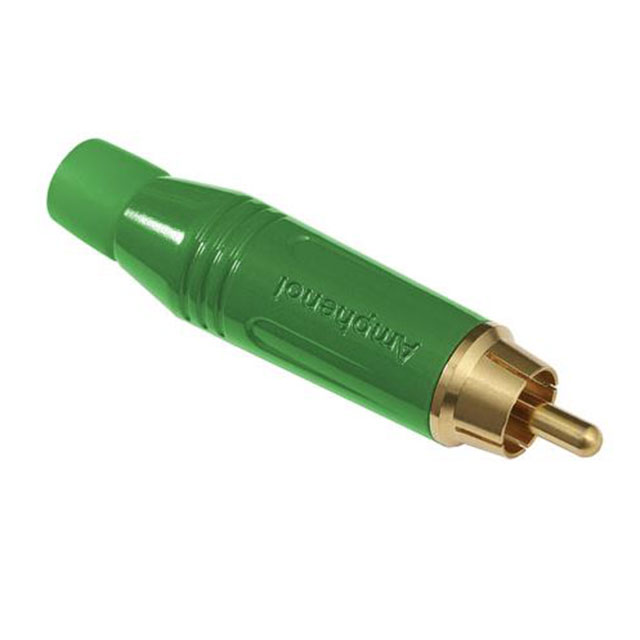

ACPR-GRN

Active

AMPHENOL AUDIO

CONN PLUG RCA GREEN

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN PLUG RCA GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	ACPR-GRN

Body Color	Gold, Green
Connector Type	Phono (RCA) Plug
Contact Material	Brass
Contact Material - Plating [custom]	Gold
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Zinc Alloy
Includes	1 Connector, 1 Insulator Tube, 1 Handle
Internal Switch(s)	False
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder

Part	Housing Material	Current Rating (Amps)	Body Color	Mounting Type	Gender	Contact Material - Plating [custom]	Includes	Connector Type	Contact Material	Signal Lines	Termination	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
AMPHENOL AUDIO ACPR-BLU	Zinc Alloy	10 A	Blue Gold	Free Hanging (In-Line)	Male	Gold	1 Connector 1 Handle 1 Insulator Tube	Phono (RCA) Plug	Brass	Mono	Solder	Unshielded	2	2
AMPHENOL AUDIO ACPR-GRN	Zinc Alloy	10 A	Gold Green	Free Hanging (In-Line)	Male	Gold	1 Connector 1 Handle 1 Insulator Tube	Phono (RCA) Plug	Brass	Mono	Solder	Unshielded	2	2
AMPHENOL AUDIO ACPR-WHT	Zinc Alloy	10 A	Gold White	Free Hanging (In-Line)	Male	Gold	1 Connector 1 Handle 1 Insulator Tube	Phono (RCA) Plug	Brass	Mono	Solder	Unshielded	2	2
AMPHENOL AUDIO ACPR-BLK	Zinc Alloy	10 A	Black Gold	Free Hanging (In-Line)	Male	Gold	1 Connector 1 Handle 1 Insulator Tube	Phono (RCA) Plug	Brass	Mono	Solder	Unshielded	2	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phono (RCA) Plug Mono Connector Solder
