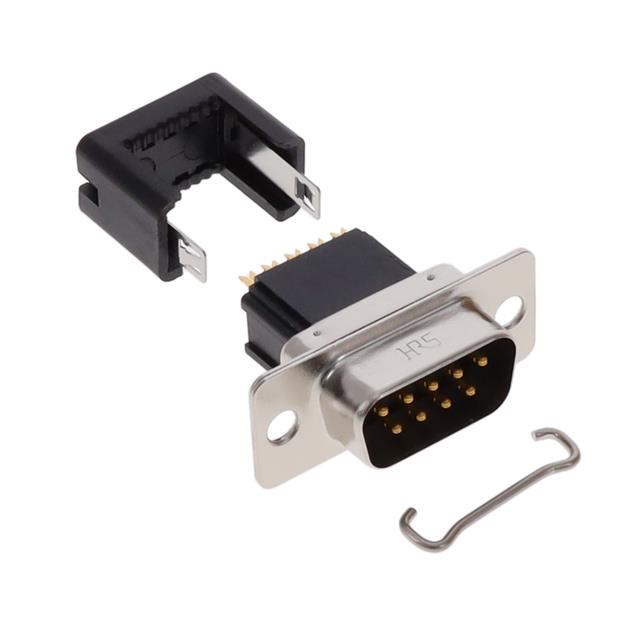

FDE-9P(05)

Active

Hirose Electric USA, Inc.

CONN D-SUB PLUG PNL MNT

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN D-SUB PLUG PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	FDE-9P(05)

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Feed Through
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Primary Material	Metal
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	IDC, Ribbon Cable
Voltage Rating	200 V

Part	Termination	Shell Material, Finish	Connector Style	Mounting Type	Connector Type	Contact Finish	Primary Material	Contact Type	Contact Material	Dielectric Material	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Number of Rows	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. FDE-9S(05)	IDC Ribbon Cable	Nickel Plated Steel	D-Sub	Free Hanging (In-Line)	Receptacle Female Sockets	Gold	Metal	Signal	Copper Alloy	Polybutylene Terephthalate (PBT)	Black	DE E	1	200 V	85 °C	-55 °C	Housing/Shell (Unthreaded)	2	Feed Through	9
Hirose Electric USA, Inc. FDE-9P(05)	IDC Ribbon Cable	Nickel Plated Steel	D-Sub	Free Hanging (In-Line)	Male Pins Plug	Gold	Metal	Signal	Copper Alloy	Polybutylene Terephthalate (PBT)	Black	DE E	1	200 V	85 °C	-55 °C	Housing/Shell (Unthreaded)	2	Feed Through Grounding Indents	9	8 çin	0.203 çm
Hirose Electric USA, Inc. FDED-9P(55)	IDC Ribbon Cable	Nickel Plated Steel	D-Sub	Free Hanging (In-Line)	Male Pins Plug	Gold	Metal	Signal	Beryllium Copper	Polybutylene Terephthalate (PBT)	Black	DE E	1	200 V	85 °C	-55 °C	Housing/Shell (Unthreaded)	2	Feed Through	9	8 çin	0.203 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector
