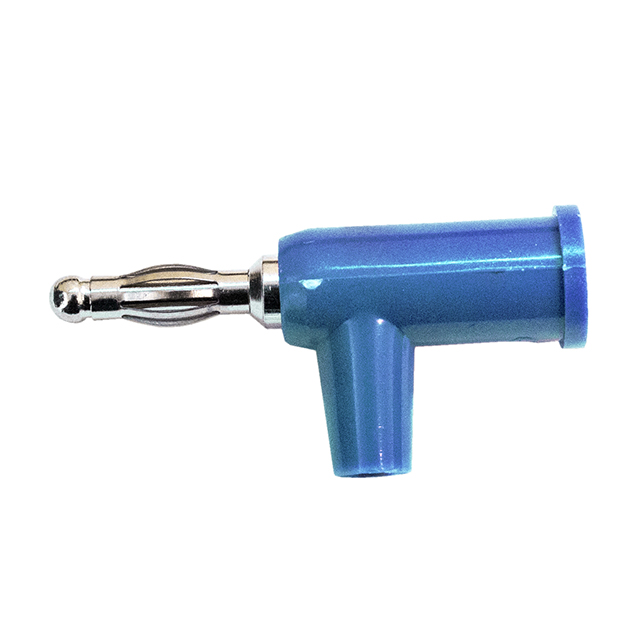

BU-P1825-6

Active

Mueller Electric Co

CONN BANANA PLUG STACK SLDRLESS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BU-P1825-6

Active

Mueller Electric Co

CONN BANANA PLUG STACK SLDRLESS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P1825-6

Body Material	Polypropylene (PP)
Color	Blue
Contact Finish	Nickel
Contact Material	Beryllium Copper
Features	Set Screw, Safety Collar
Gender	Male
Insulation	Non-Mating End Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature	50 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Solderless
Type	Banana Plug, Stackable
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

BU-P1825 Series

Part	Mounting Type	Insulation	Termination	Contact Material	Color	Plug/Mating Plug Diameter	Body Material	Gender	Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Operating Temperature	Features
Mueller Electric Co BU-P1825-1	Free Hanging (In-Line)	Non-Mating End Insulated	Solderless	Beryllium Copper	Brown	Standard Banana	Polypropylene (PP)	Male	Banana Plug Stackable	22 AWG	17.5 AWG	Nickel	50 °C	Safety Collar Set Screw
Mueller Electric Co BU-P1825-6	Free Hanging (In-Line)	Non-Mating End Insulated	Solderless	Beryllium Copper	Blue	Standard Banana	Polypropylene (PP)	Male	Banana Plug Stackable	22 AWG	17.5 AWG	Nickel	50 °C	Safety Collar Set Screw
Mueller Electric Co BU-P1825-2	Free Hanging (In-Line)	Non-Mating End Insulated	Solderless	Beryllium Copper	Red	Standard Banana	Polypropylene (PP)	Male	Banana Plug Stackable	22 AWG	17.5 AWG	Nickel	50 °C	Safety Collar Set Screw
Mueller Electric Co BU-P1825-4	Free Hanging (In-Line)	Non-Mating End Insulated	Solderless	Beryllium Copper	Yellow	Standard Banana	Polypropylene (PP)	Male	Banana Plug Stackable	22 AWG	17.5 AWG	Nickel	50 °C	Safety Collar Set Screw
Mueller Electric Co BU-P1825-5	Free Hanging (In-Line)	Non-Mating End Insulated	Solderless	Beryllium Copper	Green	Standard Banana	Polypropylene (PP)	Male	Banana Plug Stackable	22 AWG	17.5 AWG	Nickel	50 °C	Safety Collar Set Screw
Mueller Electric Co BU-P1825-7	Free Hanging (In-Line)	Non-Mating End Insulated	Solderless	Beryllium Copper	Violet	Standard Banana	Polypropylene (PP)	Male	Banana Plug Stackable	22 AWG	17.5 AWG	Nickel	50 °C	Safety Collar Set Screw
Mueller Electric Co BU-P1825-3	Free Hanging (In-Line)	Non-Mating End Insulated	Solderless	Beryllium Copper		Standard Banana	Polypropylene (PP)	Male	Banana Plug Stackable	22 AWG	17.5 AWG	Nickel	50 °C	Safety Collar Set Screw
Mueller Electric Co BU-P1825-9	Free Hanging (In-Line)	Non-Mating End Insulated	Solderless	Beryllium Copper	White	Standard Banana	Polypropylene (PP)	Male	Banana Plug Stackable	22 AWG	17.5 AWG	Nickel	50 °C	Safety Collar Set Screw

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.33
		10	$ 1.93
		100	$ 1.84
		500	$ 1.78
		1000	$ 1.69
Newark	Each	250	$ 2.86
		500	$ 2.66
		1000	$ 2.50

Description

General part information

BU-P1825 Series

Banana Plug, Stackable Connector Standard Banana Solderless Blue

Documents

Technical documentation and resources
