0191390061

Active

Molex

CONN SPADE TERM 10-12AWG #10 YEL

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0191390061

Active

Molex

CONN SPADE TERM 10-12AWG #10 YEL

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191390061

Color	Yellow
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [diameter]	5.72 mm
Insulation Diameter [diameter]	0.225 "
Length - Overall [x]	1.09 in
Length - Overall [x]	27.69 mm
Length - Ring Center to Termination [x]	0.305 "
Length - Ring Center to Termination [x]	7.75 mm
Length - Termination	0.56 "
Length - Termination	14.22 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	5.03 mm
Tongue Inside Opening [x]	0.198 in
Width - Outer Edges [y]	8.13 mm
Width - Outer Edges [y]	0.32 in
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

019139 Series

Part	Insulation	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Wire Gauge [Max]	Wire Gauge [Min]	Material - Insulation	Stud/Tab Size	Color	Length - Ring Center to Termination [x]	Length - Ring Center to Termination	Contact Finish	Mounting Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Material	Terminal Type	Termination	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Stud/Tab Size	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Termination	Length - Termination	Length - Ring Center to Termination [x]	Length - Ring Center to Termination
Molex 0191390014	Insulated	0.173 in	4.39 mm	22 AWG	17.5 AWG	Nylon Polyamide (PA)	8 Stud	Red	0.207 in	5.26 mm	Tin	Free Hanging (In-Line)	7.39 mm	0.291 in	Copper	Standard	Crimp	19.94 mm	0.785 in	3.56 mm	0.14 in
Molex 0191390012	Insulated	0.146 in	3.71 mm	22 AWG	17.5 AWG	Nylon Polyamide (PA)	8 Stud	Red	0.207 in	5.26 mm	Tin	Free Hanging (In-Line)	7.39 mm	0.291 in	Copper	Standard	Crimp	19.94 mm	0.785 in	3.56 mm	0.14 in
Molex 0191390015	Insulated	0.198 in	5.03 mm	22 AWG	17.5 AWG	Nylon Polyamide (PA)		Red	0.207 in	5.26 mm	Tin	Free Hanging (In-Line)	7.39 mm	0.291 in	Copper	Standard	Crimp	19.94 mm	0.785 in	3.56 mm	0.14 in	10 Stud
Molex 0191390061	Insulated	0.198 in	5.03 mm	12 AWG	10 AWG	Nylon Polyamide (PA)		Yellow	0.305 "		Electro-Tin	Free Hanging (In-Line)			Copper	Standard	Crimp		27.69 mm	5.72 mm	0.225 "	10 Stud	1.09 in	8.13 mm	0.32 in	0.56 "	14.22 mm	7.75 mm
Molex 0191390006	Insulated	0.146 in	3.71 mm	22 AWG	17.5 AWG	Nylon Polyamide (PA)		Red	0.318 in		Electro-Tin	Free Hanging (In-Line)			Copper	Standard	Crimp		23.32 mm	3.56 mm	0.14 in	6 Stud	0.918 in	6.53 mm	0.257 in			8.08 mm
Molex 0191390019	Insulated	0.146 in	3.71 mm	22 AWG	17.5 AWG	Nylon Polyamide (PA)		Red	0.207 in	5.26 mm	Tin	Free Hanging (In-Line)	6.22 mm	0.245 in	Copper	Standard	Crimp	19.94 mm	0.785 in	3.56 mm	0.14 in	6 Stud
Molex 0191390044	Insulated					Nylon Polyamide (PA)	8 Stud				Tin						Crimp			4.29 mm	0.169 in
Molex 0191390011	Insulated	0.146 in	3.71 mm	22 AWG	17.5 AWG	Nylon Polyamide (PA)	8 Stud	Red	0.207 in	5.26 mm	Tin	Free Hanging (In-Line)	7.39 mm	0.291 in	Copper	Standard	Crimp	19.94 mm	0.785 in	3.56 mm	0.14 in
Molex 0191390068	Insulated					Nylon Polyamide (PA)		Blue	0.235 in			Free Hanging (In-Line)				Standard	Crimp		20.22 mm			10 Stud	0.796 in	7.75 mm	0.305 "			5.97 mm
Molex 0191390003	Insulated	0.119 in	3.02 mm	22 AWG	17.5 AWG	Nylon Polyamide (PA)		Red		4.65 mm	Electro-Tin	Free Hanging (In-Line)	4.75 mm	0.187 in	Copper	Standard	Crimp		18.47 mm	3.56 mm	0.14 in	4 Stud	0.727 in						0.183 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.33

Description

General part information

019139 Series

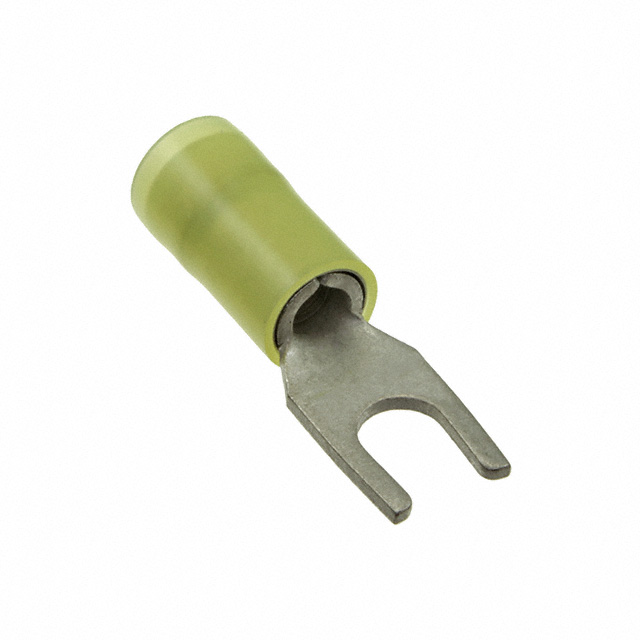

Yellow 10 Stud Spade Terminal Connector Crimp 10-12 AWG

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
