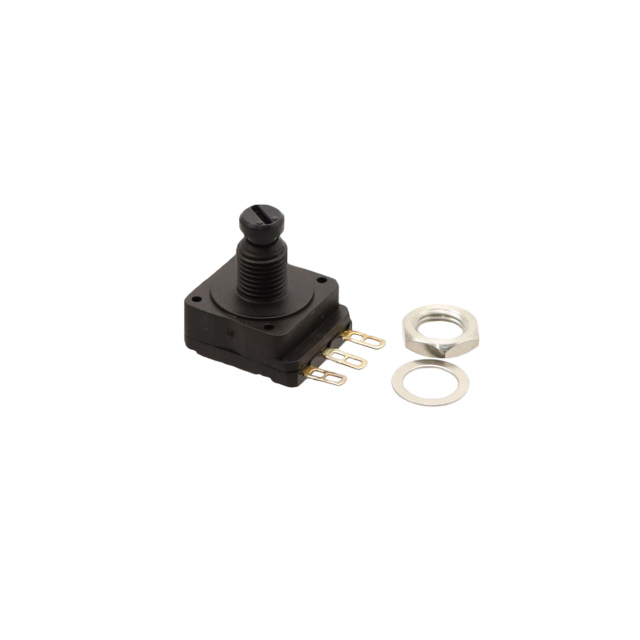

PC16SH-07CP20-103A2020-TA

Active

Amphenol Piher Sensing Systems

POT 10K OHM 1/5W CARBON LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PC16SH-07CP20-103A2020-TA

Active

Amphenol Piher Sensing Systems

POT 10K OHM 1/5W CARBON LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PC16SH-07CP20-103A2020-TA

Actuator Diameter [diameter]	4 mm
Actuator Diameter [diameter]	0.157 in
Actuator Length [x]	0.453 in
Actuator Length [x]	11.5 mm
Actuator Type	Flatted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	0.75
Bushing Thread	M7
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.2 W
Power (Watts)	1/5
Resistance (Ohms)	10k
Resistive Material	Carbon
Rotation	300 ░
Size - Body [x]	18 mm
Size - Body [x]	0.709 "
Size - Body [y]	0.63 in
Size - Body [y]	16 mm
Taper	Linear
Temperature Coefficient	300 ppm/°C
Termination Style	Solder Lug
Tolerance	20 %

PC16SH Series

Part	Bushing Thread	Bushing Thread	Taper	Power (Watts)	Power (Watts)	Number of Turns	Resistive Material	Rotation	Temperature Coefficient	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Type	Termination Style	Tolerance	Number of Gangs	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Resistance (Ohms)	Adjustment Type	Resistance (Ohms)	Actuator Length [z]	Actuator Length [z]	Actuator Length [x]	Actuator Length [x]
Amphenol Piher Sensing Systems PC16SH-07CP06-103A2020-TA	0.75	M7	Linear	0.2 W	1/5	1	Carbon	300 ░	300 ppm/°C	0.236 in	6 mm	Knurled	Solder Lug	20 %	1	18 mm	0.63 in	16 mm	0.709 "	10k	User Defined
Amphenol Piher Sensing Systems PC16SH-07CP06-104A2020-TA	0.75	M7	Linear	0.2 W	1/5	1	Carbon	300 ░	300 ppm/°C	0.236 in	6 mm	Knurled	Solder Lug	20 %	1	18 mm	0.63 in	16 mm	0.709 "		User Defined	100 kOhms
Amphenol Piher Sensing Systems PC16SH-10CP05-103A2020-C-TA		M10 x 0.75	Linear	0.2 W	1/5	1	Carbon	300 ░	300 ppm/°C	0.236 in	6 mm	Knurled	Solder Lug	20 %	1	18 mm	0.63 in	16 mm	0.709 "	10k	User Defined		35.5 mm	1.398 in
Amphenol Piher Sensing Systems PC16SH-07CP20-103A2020-TA	0.75	M7	Linear	0.2 W	1/5	1	Carbon	300 ░	300 ppm/°C	0.157 in	4 mm	Flatted	Solder Lug	20 %	1	18 mm	0.63 in	16 mm	0.709 "	10k	User Defined				0.453 in	11.5 mm
Amphenol Piher Sensing Systems PC16SH-07CP06-103A2020-C-TA	0.75	M7	Linear	0.2 W	1/5	1	Carbon	300 ░	300 ppm/°C	0.236 in	6 mm	Knurled	Solder Lug	20 %	1	18 mm	0.63 in	16 mm	0.709 "	10k	User Defined
Amphenol Piher Sensing Systems PC16SH-10IP11-473A2020-TA		M10 x 0.75	Linear	0.2 W	1/5	1	Carbon	300 ░	300 ppm/°C	0.246 "	6.25 mm	Knurled	PC Pins	20 %	1	18 mm	0.63 in	16 mm	0.709 "	47k	Side Adjustment		20 mm	0.787 in
Amphenol Piher Sensing Systems PC16SH-10CP22-103A2020-C-TA		M10 x 0.75	Linear	0.2 W	1/5	1	Carbon	300 ░	300 ppm/°C	0.236 in	6 mm	Flatted	Solder Lug	20 %	1	18 mm	0.63 in	16 mm	0.709 "	10k	User Defined				0.984 in	25 mm
Amphenol Piher Sensing Systems PC16SH-10CP16-105A2020-C-TA		M10 x 0.75	Linear	0.2 W	1/5	1	Carbon	300 ░	300 ppm/°C	0.236 in	6 mm	Flatted	Solder Lug	20 %	1	18 mm	0.63 in	16 mm	0.709 "	1M	User Defined		21.5 mm	0.846 in
Amphenol Piher Sensing Systems PC16SH-07IP06-103A2020-TA	0.75	M7	Linear	0.2 W	1/5	1	Carbon	300 ░	300 ppm/°C	0.236 in	6 mm	Knurled	PC Pins	20 %	1	18 mm	0.63 in	16 mm	0.709 "	10k	Side Adjustment
Amphenol Piher Sensing Systems PC16SH-10IP06-103A2020-TA		M10 x 0.75	Linear	0.2 W	1/5	1	Carbon	300 ░	300 ppm/°C	0.236 in	6 mm	Knurled	PC Pins	20 %	1	18 mm	0.63 in	16 mm	0.709 "	10k	Side Adjustment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.28
		10	$ 1.92
		100	$ 1.61
		600	$ 1.41
		1200	$ 1.33
		5400	$ 1.19

Description

General part information

PC16SH Series

10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.2W, 1/5W Solder Lug
