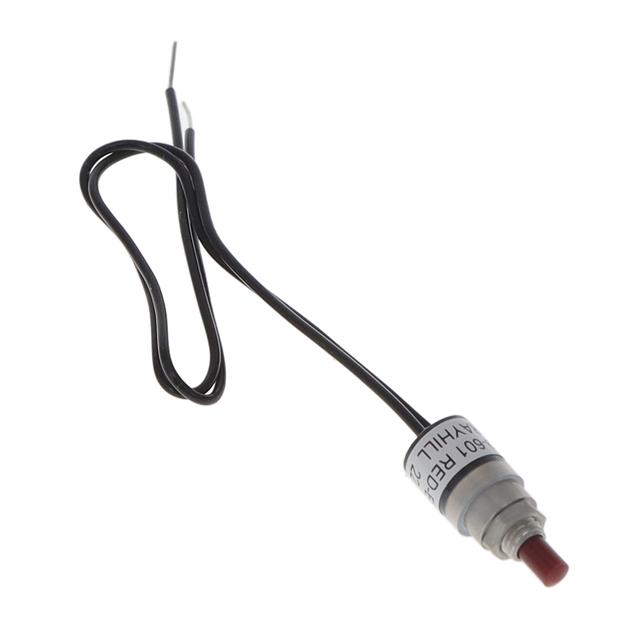

39-601 RED-EW

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.15A 5V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.15A 5V

Technical Specifications

Parameters and characteristics for this part

Specification	39-601 RED-EW

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	150 mA
Electrical Life	1000000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	4.37 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Standard
Voltage Rating - DC	5 V

Part	Type	Actuator Type	Current Rating (Amps)	Circuit	Termination Style	Actuator Marking	Electrical Life	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Mounting Type	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Features
Grayhill Inc. 39-601 RED-EW	Standard	Round Plunger	150 mA	SPST-NO	Wire Leads	No Marking	1000000 Cycles	Off-Mom	85 °C	-40 °C	Red	Panel Mount Rear	4.37 mm	5 V	Epoxy Sealed Terminals
Grayhill Inc. 39-601 BLK-EW	Standard	Round Plunger	150 mA	SPST-NO	Wire Leads	No Marking	1000000 Cycles	Off-Mom	85 °C	-40 °C	Black	Panel Mount Rear	4.37 mm	5 V	Epoxy Sealed Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
