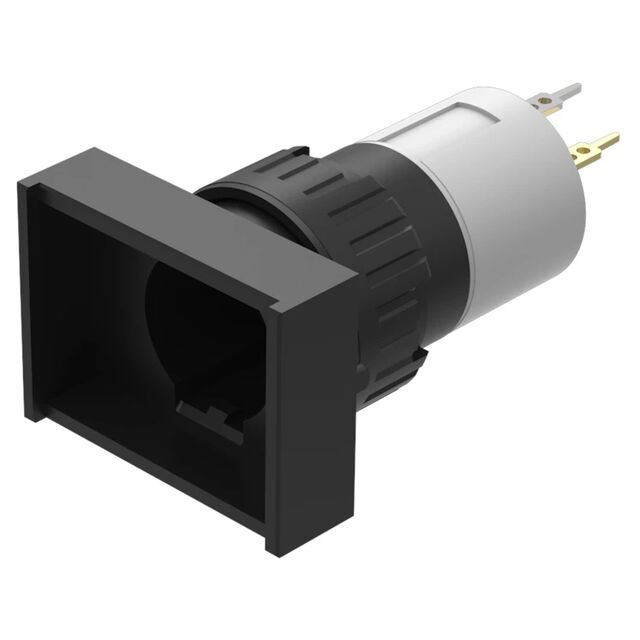

31-465.036

Active

EAO

SWITCH PB SPST-NO 0.1A 42V

Search across all available documentation for this part.

Active

EAO

SWITCH PB SPST-NO 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	31-465.036

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	SPST-NO
Current Rating (Amps)	100 mA
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-On
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

Part	Mechanical Life	Switch Function	Mounting Type	Voltage Rating - AC	Actuator Marking	Current Rating (Amps)	Termination Style	Actuator Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Type	Panel Cutout Dimensions [diameter]	Circuit	Voltage Rating - DC
EAO 31-465.036	1000000 Cycles	Off-On	Panel Mount Front	42 V	No Marking	100 mA	PC Pin Solder Lug	Rectangular Button (Not Included)	IP40	55 °C	-25 °C	Standard	16 mm	SPST-NO	42 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
