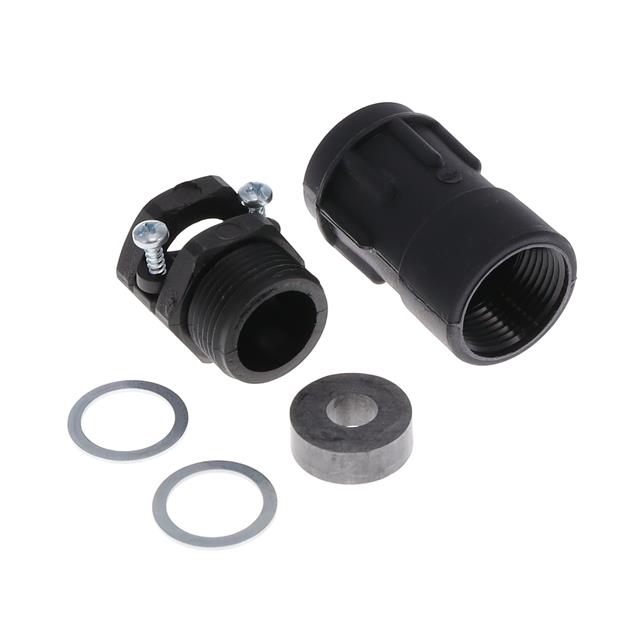

TNA14CC-HC00L

Active

ITT Cannon, LLC

CONN BACKSHELL W/CLMP SZ14 BLACK

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN BACKSHELL W/CLMP SZ14 BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	TNA14CC-HC00L

Cable Exit	180 °
Cable Opening [custom]	14.6 mm
Cable Opening [custom]	0.575 in
Color	Black
Features	Grommet, Clamp Screws
For Use With/Related Products	Jacketed Cable
Includes	1 Grommet, 1 O-Ring, 2 Screws, 2 Washers, 2 pc Cable Clamp, 1 Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Plastic
Shell Size - Insert	14
Shielding	Unshielded
Type	Backshell, Cable Clamp

Part	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Type	Cable Exit	Features	Shell Size - Insert	Includes	Shielding	For Use With/Related Products	Color	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Accessory Type
ITT Cannon, LLC TNA14CC-HC00L	IP67 - Dust Tight Waterproof	14.6 mm	0.575 in	Backshell Cable Clamp	180 °	Clamp Screws Grommet	14	1 Backshell 1 Grommet 1 O-Ring 2 pc Cable Clamp 2 Screws 2 Washers	Unshielded	Jacketed Cable	Black	Plastic
ITT Cannon, LLC TNA14HSAD-00L				Backshell Heat Shrink Adapter	180 °		14			Trident Neptune Metal (TNM) Connectors	Silver	Zinc Alloy	24.18 mm	0.952 in	Nickel
ITT Cannon, LLC TNA14DCP0-00B						Contains Strap Dust Tight Waterproof	14			Trident Neptune Plugs	Black					Cap (Cover) Dust

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Cable Clamp 14
