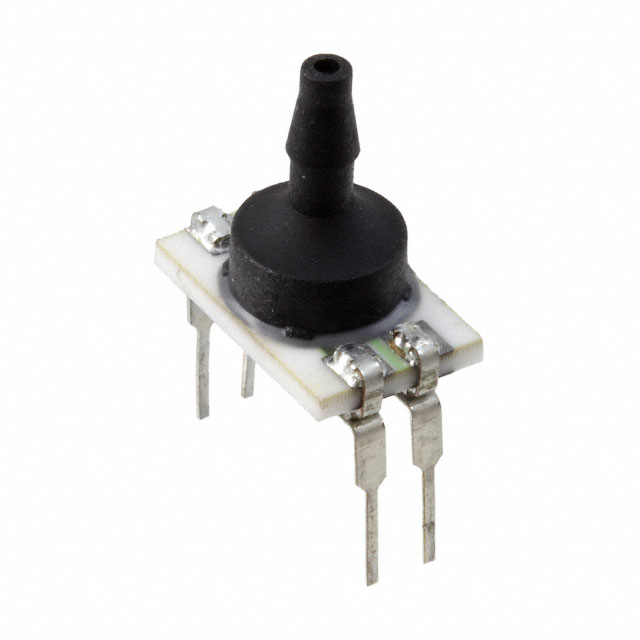

TBPDANN030PGUCV

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 30PSIG 0.08" .02625V 4DIP

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 30PSIG 0.08" .02625V 4DIP

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Applications	Output [Min]	Output [Max]	Output Type	Features	Pressure Type	Package / Case	Package / Case	Package / Case	Port Size	Port Size	Port Style	Accuracy	Operating Pressure	Operating Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Maximum Pressure	Maximum Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Maximum Pressure [Max]	Maximum Pressure [Max]
Honeywell Sensing and Productivity Solutions TBPDANN030PGUCV	PC Pin	Board Mount	0 mV	26.25 mV	Wheatstone Bridge	Temperature Compensated	Vented Gauge	4-DIP Top Port	11.5 mm	0.453 in	0.08 " 2.54 mm	Male Tube	Barbed	0.15 %	206.84 kPa	30 PSI	12 V	1.5 V	Through Hole	115 PSI	792.9 kPa	125 °C	-40 °C	4-DIP
Honeywell Sensing and Productivity Solutions TBPDANN150PGUCV	PC Pin	Board Mount	0 mV	45.75 mV	Wheatstone Bridge	Temperature Compensated	Vented Gauge	4-DIP Top Port	11.5 mm	0.453 in	0.11 " 2.74 mm		Barbed	0.15 %	1034.21 kPa	150 PSI	12 V	1.5 V	Through Hole			125 °C	-40 °C	4-DIP	245 PSI	1689.22 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 30PSI (206.84kPa) Vented Gauge Male - 0.08" (2.54mm) Tube 0 mV ~ 26.25 mV (5V) 4-DIP (0.453", 11.50mm), Top Port
