45-2231.31E0.000

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	45-2231.31E0.000

(Select First, Then Apply Filters) Compatible Series	45, EAO
Actuator Type	Pushbutton, Round
Panel Cutout Dimensions	22.3 mm
Requires	Illumination Source, Contact Block(s)
Type	Momentary

Part	Panel Cutout Dimensions	Requires	(Select First, Then Apply Filters) Compatible Series	Actuator Type	Type	Illumination
EAO 45-2231.32E0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Pushbutton Round	Momentary
EAO 45-2231.32K0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Pushbutton Round	Momentary	Illuminated
EAO 45-2231.4FH0.000	30.5 mm	Contact Block(s) Illumination Source	45 EAO	Pushbutton Round	Momentary	Illuminated - Green
EAO 45-2231.4FG0.000	30.5 mm	Contact Block(s) Illumination Source	45 EAO	Pushbutton Round	Momentary	Illuminated - Yellow
EAO 45-2231.21F0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Pushbutton Round	Momentary	Illuminated - Amber
EAO 45-2231.31K0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Pushbutton Round	Momentary	Illuminated
EAO 45-2231.11J0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Pushbutton Round	Momentary	Illuminated - Blue
EAO 45-2231.12G0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Pushbutton Round	Momentary	Illuminated - Yellow
EAO 45-2231.31E0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Pushbutton Round	Momentary
EAO 45-2231.14J0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Pushbutton Round	Momentary	Illuminated - Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.07

General part information

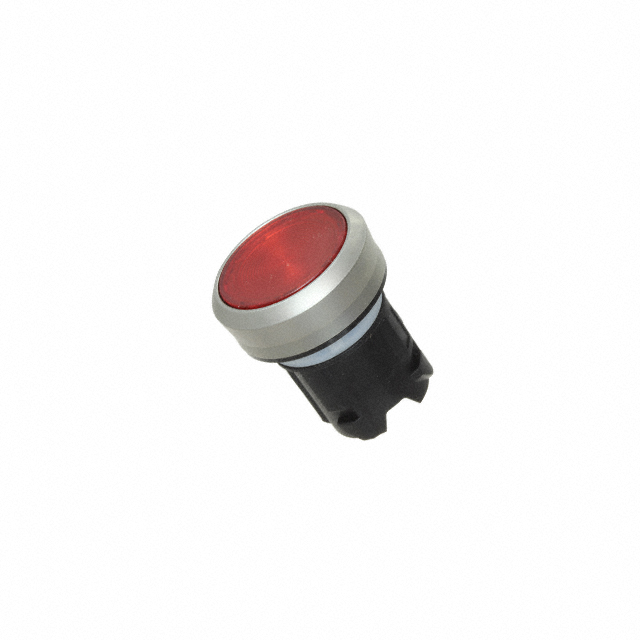

Configurable Switch Body Pushbutton, Round Illuminated - Red

Technical documentation and resources
