SF0929-6200-2X

Active

Amphenol SV Microwave

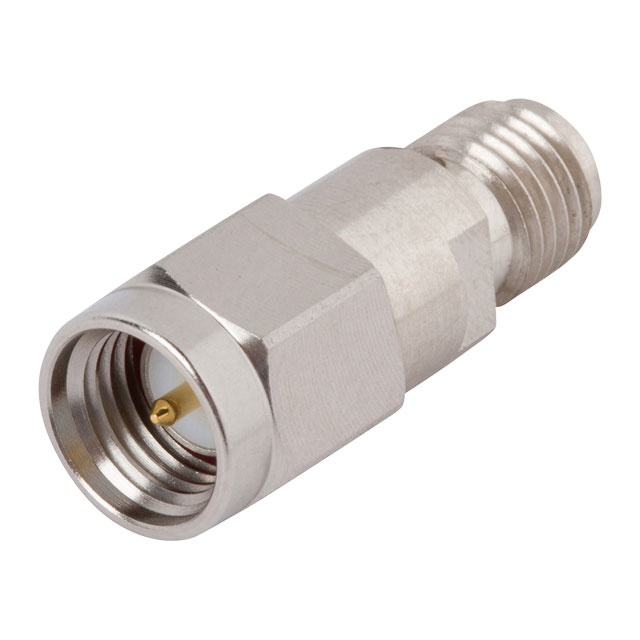

RF ATTENUATOR 50OHM SMA MODULE

Search across all available documentation for this part.

Active

Amphenol SV Microwave

RF ATTENUATOR 50OHM SMA MODULE

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Impedance	Power (Watts)	Frequency Range [Max]	Attenuation Value [custom]	Attenuation Value
Amphenol SV Microwave SF0929-6200-125	SMA In-Line Module	50 Ohms	2 W	18 GHz	12.5 dB
Amphenol SV Microwave SF0929-6200-10	SMA In-Line Module	50 Ohms	2 W	18 GHz		10 dB
Amphenol SV Microwave SF0929-6200-9.5	SMA In-Line Module	50 Ohms	2 W	18 GHz	9.5 dB
Amphenol SV Microwave SF0929-6200-2X	SMA In-Line Module	50 Ohms	2 W	18 GHz
Amphenol SV Microwave SF0929-6200-165	SMA In-Line Module	50 Ohms	2 W	18 GHz	16.5 dB
Amphenol SV Microwave SF0929-6200-18	SMA In-Line Module	50 Ohms	2 W	18 GHz		18 dB
Amphenol SV Microwave SF0929-6200-14	SMA In-Line Module	50 Ohms	2 W	18 GHz	14 dB
Amphenol SV Microwave SF0929-6200-03	SMA In-Line Module	50 Ohms	2 W	18 GHz	3 dB
Amphenol SV Microwave SF0929-6200-12	SMA In-Line Module	50 Ohms	2 W	18 GHz	12 dB
Amphenol SV Microwave SF0929-6200-16	SMA In-Line Module	50 Ohms	2 W	18 GHz	16 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Attenuators 0 Hz ~ 18 GHz 50 Ohms 2W SMA In-Line Module
