DF63M-3P-3.96DSA
ActiveHirose Electric USA, Inc.

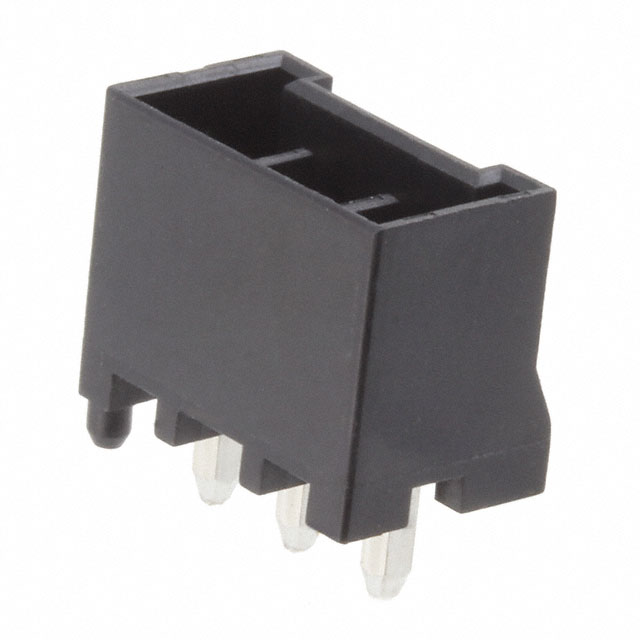

CONN HEADER VERT 3POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
DF63M-3P-3.96DSA
ActiveHirose Electric USA, Inc.
CONN HEADER VERT 3POS 3.96MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF63M-3P-3.96DSA |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Latch Holder |
| Features | Glow Wire Compliant, Board Guide |
| Insulation Color | Black |
| Insulation Height | 10 mm |
| Insulation Height | 0.394 " |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.156 in |
| Pitch - Mating | 3.96 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 VAC |
DF63M Series
| Part | Contact Finish - Post | Number of Rows | Number of Positions Loaded | Contact Finish - Mating | Shrouding | Fastening Type | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Voltage Rating | Contact Material | Pitch - Mating | Pitch - Mating | Mounting Type | Style | Features | Contact Type | Insulation Color | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Current Rating (Amps) | Termination | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Tin | 1 | All | Gold | Shrouded - 4 Wall | Latch Holder | UL94 V-0 | 1 çm | 39.4 çin | 2 | 0.203 Ám | 8 Áin | 10 mm | 0.394 " | 3.5 mm | 0.138 in | 600 VAC | Brass | 0.312 in | 7.92 mm | Through Hole | Board to Cable/Wire | Board Guide Glow Wire Compliant | Male Pin | Black | Square | 105 ░C | -55 °C | Header | Varies by Wire Gauge | Solder | Polybutylene Terephthalate (PBT) Glass Filled |
Hirose Electric USA, Inc. | Tin | 1 | All | Shrouded - 4 Wall | Latch Holder | UL94 V-0 | 1 çm | 39.4 çin | 1 | 1 µm | 39.4 µin | 9 mm | 0.354 in | 3.5 mm | 0.138 in | 600 VAC | Brass | Through Hole Right Angle | Board to Cable/Wire | Board Guide Glow Wire Compliant | Male Pin | Black | Square | 105 ░C | -55 °C | Header | Varies by Wire Gauge | Solder | Polybutylene Terephthalate (PBT) Glass Filled | |||
Hirose Electric USA, Inc. | Tin | 1 | All | Gold | Shrouded - 4 Wall | Latch Holder | UL94 V-0 | 1 çm | 39.4 çin | 0.203 Ám | 8 Áin | 9 mm | 0.354 in | 3.5 mm | 0.138 in | 600 VAC | Brass | 0.156 in | 3.96 mm | Through Hole Right Angle | Board to Cable/Wire | Board Guide Glow Wire Compliant | Male Pin | Black | Square | 105 ░C | -55 °C | Header | Varies by Wire Gauge | Solder | Polybutylene Terephthalate (PBT) Glass Filled | |
Hirose Electric USA, Inc. | Tin | 1 | All | Gold | Shrouded - 4 Wall | Latch Holder | UL94 V-0 | 1 çm | 39.4 çin | 2 | 0.203 Ám | 8 Áin | 10 mm | 0.394 " | 3.5 mm | 0.138 in | 600 VAC | Brass | 0.156 in | 3.96 mm | Through Hole | Board to Cable/Wire | Board Guide Glow Wire Compliant | Male Pin | Black | Square | 105 ░C | -55 °C | Header | Varies by Wire Gauge | Solder | Polybutylene Terephthalate (PBT) Glass Filled |
Hirose Electric USA, Inc. | Tin | 1 | All | Gold | Shrouded - 4 Wall | Latch Holder | UL94 V-0 | 1 çm | 39.4 çin | 4 | 0.203 Ám | 8 Áin | 10 mm | 0.394 " | 3.5 mm | 0.138 in | 600 VAC | Brass | 0.156 in | 3.96 mm | Through Hole | Board to Cable/Wire | Board Guide Glow Wire Compliant | Male Pin | Black | Square | 105 ░C | -55 °C | Header | Varies by Wire Gauge | Solder | Polybutylene Terephthalate (PBT) Glass Filled |
Hirose Electric USA, Inc. | Tin | 1 | All | Gold | Shrouded - 4 Wall | Latch Holder | UL94 V-0 | 1 çm | 39.4 çin | 6 | 0.203 Ám | 8 Áin | 9 mm | 0.354 in | 3.5 mm | 0.138 in | 600 VAC | Brass | 0.156 in | 3.96 mm | Through Hole Right Angle | Board to Cable/Wire | Board Guide Glow Wire Compliant | Male Pin | Black | Square | 105 ░C | -55 °C | Header | Varies by Wire Gauge | Solder | Polybutylene Terephthalate (PBT) Glass Filled |
Hirose Electric USA, Inc. | Tin | 1 | All | Shrouded - 4 Wall | Latch Holder | UL94 V-0 | 1 çm | 39.4 çin | 1 µm | 39.4 µin | 10 mm | 0.394 " | 3.5 mm | 0.138 in | 600 VAC | Brass | 0.156 in | 3.96 mm | Through Hole | Board to Cable/Wire | Board Guide Glow Wire Compliant | Male Pin | Black | Square | 105 ░C | -55 °C | Header | Varies by Wire Gauge | Solder | Polybutylene Terephthalate (PBT) Glass Filled | ||
Hirose Electric USA, Inc. | Tin | 1 | All | Shrouded - 4 Wall | Latch Holder | UL94 V-0 | 1 çm | 39.4 çin | 2 | 1 µm | 39.4 µin | 9 mm | 0.354 in | 3.5 mm | 0.138 in | 600 VAC | Brass | 0.312 in | 7.92 mm | Through Hole Right Angle | Board to Cable/Wire | Board Guide Glow Wire Compliant | Male Pin | Black | Square | 105 ░C | -55 °C | Header | Varies by Wire Gauge | Solder | Polybutylene Terephthalate (PBT) Glass Filled | |
Hirose Electric USA, Inc. | Tin | 1 | All | Gold | Shrouded - 4 Wall | Latch Holder | UL94 V-0 | 1 çm | 39.4 çin | 4 | 0.203 Ám | 8 Áin | 9 mm | 0.354 in | 3.5 mm | 0.138 in | 600 VAC | Brass | 0.156 in | 3.96 mm | Through Hole Right Angle | Board to Cable/Wire | Board Guide Glow Wire Compliant | Male Pin | Black | Square | 105 ░C | -55 °C | Header | Varies by Wire Gauge | Solder | Polybutylene Terephthalate (PBT) Glass Filled |
Hirose Electric USA, Inc. | Tin | 1 | All | Gold | Shrouded - 4 Wall | Latch Holder | UL94 V-0 | 1 çm | 39.4 çin | 1 | 0.203 Ám | 8 Áin | 10 mm | 0.394 " | 3.5 mm | 0.138 in | 600 VAC | Brass | Through Hole | Board to Cable/Wire | Board Guide Glow Wire Compliant | Male Pin | Black | Square | 105 ░C | -55 °C | Header | Varies by Wire Gauge | Solder | Polybutylene Terephthalate (PBT) Glass Filled |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.52 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.30 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.23 | |||
| 5000 | $ 0.20 | |||
| 10000 | $ 0.18 | |||
Description
General part information
DF63M Series
Connector Header Through Hole 3 position 0.156" (3.96mm)
