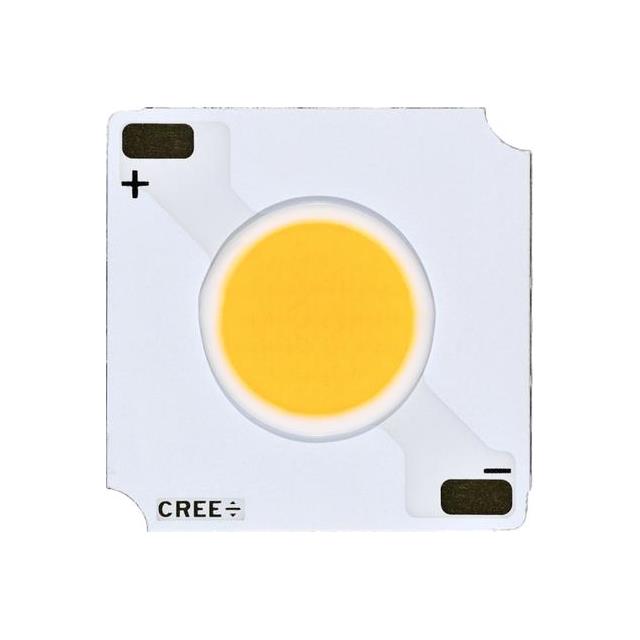

CHA0825-R090-00PN0U0A30Q

Active

Cree LED

XLAMP CHA LED WHITE PRO9

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CHA0825-R090-00PN0U0A30Q

Active

Cree LED

XLAMP CHA LED WHITE PRO9

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CHA0825-R090-00PN0U0A30Q

Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	1.2 A
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	8.5 mm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	114 °
Voltage - Forward (Vf) (Typ)	36 V

CHA0825 Series

Part	Temperature - Test	Voltage - Forward (Vf) (Typ)	Height [z]	Current - Max [Max]	Lens Type	Viewing Angle	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	CCT (K)	Type	Color	Configuration	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test
Cree LED CHA0825-R090-00PN0U0A27G	85 °C	36 V	1.5 mm	1.2 A	Flat	114 °	90	8.5 mm	2700 K	Chip On Board (COB)	Warm White	Square	19 mm	19 mm
Cree LED CHA0825-R090-00PN0U0A30U	85 °C	36 V	1.5 mm	1.2 A	Flat	114 °	90	8.5 mm		Chip On Board (COB)	Warm White	Square	19 mm	19 mm
Cree LED CHA0825-R090-00PN0U0A40G	85 °C	36 V	1.5 mm	1.2 A	Flat	114 °	90	8.5 mm	4000 K	Chip On Board (COB)	Neutral White	Square	19 mm	19 mm
Cree LED CHA0825-R090-00PN0U0A31Q	85 °C	36 V	1.5 mm	1.2 A	Flat	114 °	90	8.5 mm	3100 K	Chip On Board (COB)	Warm White	Square	19 mm	19 mm
Cree LED CHA0825-R090-00PN0U0A30Q	85 °C	36 V	1.5 mm	1.2 A	Flat	114 °	90	8.5 mm		Chip On Board (COB)	Warm White	Square	19 mm	19 mm
Cree LED CHA0825-0000-000N0H0A30G	85 °C	36 V	1.5 mm	1.2 A	Flat	114 °	80	8.5 mm	3000 K	Chip On Board (COB)	Warm White	Square	19 mm	19 mm	3214 lm
Cree LED CHA0825-0000-000N0Z0A27H	85 °C	36 V	1.5 mm	1.2 A	Flat	114 °	95	8.5 mm	2700 K	Chip On Board (COB)	Warm White	Square	19 mm	19 mm	2300 lm	91 lm/W
Cree LED CHA0825-R090-00PN0U0A35H	85 °C	36 V	1.5 mm	1.2 A	Flat	114 °	90	8.5 mm	3500 K	Chip On Board (COB)	Warm White	Square	19 mm	19 mm
Cree LED CHA0825-R090-00PN0Z0A27H	85 °C	36 V	1.5 mm	1.2 A	Flat	114 °	95	8.5 mm	2700 K	Chip On Board (COB)	Warm White	Square	19 mm	19 mm
Cree LED CHA0825-R090-00PN0U0A30G	85 °C	36 V	1.5 mm	1.2 A	Flat	114 °	90	8.5 mm		Chip On Board (COB)	Warm White	Square	19 mm	19 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	90	$ 9.82

Description

General part information

CHA0825 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CHA0825 White, Warm Square
