BCQ1300-48S12B-4L

Active

ARTESYN / Advanced Energy

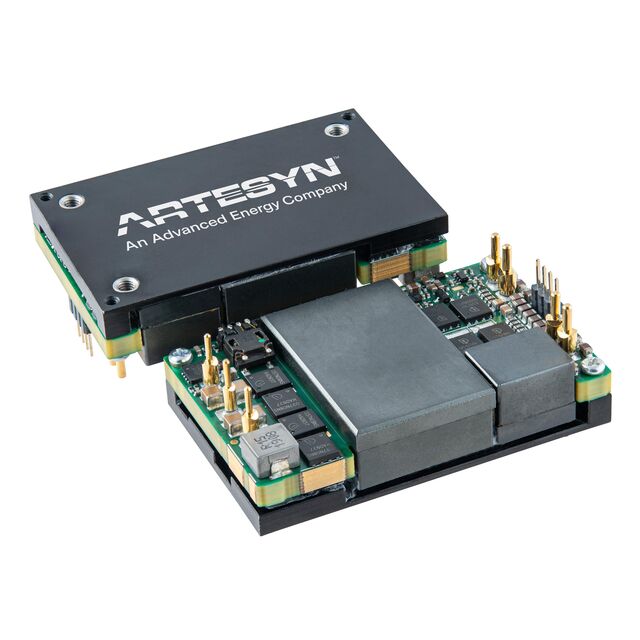

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1300W, 40 - 60VIN, 12VA.90A, QUARTER BRICK BASEPLATE, NEGATIVE LOGIC, PIN LENGTH: 4.6MM

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1300W, 40 - 60VIN, 12VA.90A, QUARTER BRICK BASEPLATE, NEGATIVE LOGIC, PIN LENGTH: 4.6MM

Technical Specifications

Parameters and characteristics for this part

Specification	BCQ1300-48S12B-4L

Applications	ITE (Commercial)
Approval Agency	CE, TUV, UL
Control Features	Active Low, Enable
Current - Output (Max) [Max]	90 A
Efficiency	97.7 %
Features	Baseplate, Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	1305 W
Size / Dimension [x]	58.4 mm
Size / Dimension [x]	2.3 in
Size / Dimension [y]	36.8 mm
Size / Dimension [y]	1.45 in
Size / Dimension [z]	14.5 mm
Size / Dimension [z]	0.57 "
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	60 V
Voltage - Input (Min) [Min]	40 V
Voltage - Isolation	1.5 kV
Voltage - Output 1 [Max]	14.5 V
Voltage - Output 1 [Min]	9.6 V

Part	Mounting Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Power (Watts)	Control Features	Approval Agency	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Efficiency	Type	Features	Current - Output (Max) [Max]	Voltage - Isolation	Number of Outputs	Voltage - Input (Min) [Min]
ARTESYN / Advanced Energy BCQ1300-48S12B-4L	Through Hole	14.5 V	9.6 V	60 V	85 °C	-40 °C	Quarter Brick	1305 W	Active Low Enable	CE TUV UL	ITE (Commercial)	36.8 mm	58.4 mm	14.5 mm	2.3 in	0.57 "	1.45 in	Quarter Brick	97.7 %	Isolated Module	Adjustable Output Baseplate Remote On/Off	90 A	1.5 kV	1	40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 9.6 ~ 14.5 V 90A 40V - 60V Input
