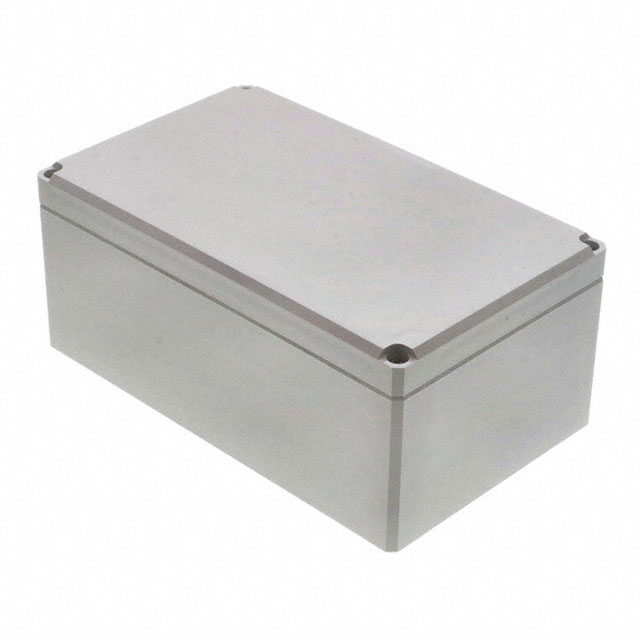

Q20129ABD

Active

Hoffman Enclosures, Inc.

BOX ABS GRAY 7.87"L X 4.72"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX ABS GRAY 7.87"L X 4.72"W

Technical Specifications

Parameters and characteristics for this part

Specification	Q20129ABD

Area (L x W)	37.2 in²
Area (L x W)	240 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Features	Wall Mount, PCB Supports, Sealing Gasket
Height [z]	3.386 in
Height [z]	86 mm
Material	Plastic, ABS
Ratings	4X, 12, IP67, 13, UL-508A, NEMA 4, 6
Size / Dimension [x]	7.874 in
Size / Dimension [x]	200 mm
Size / Dimension [y]	120 mm
Size / Dimension [y]	4.724 in
Thickness	3 mm
Thickness	0.118 in
Weight	362.87 g
Weight	0.8 lb

Part	Design	Area (L x W)	Area (L x W)	Color	Thickness	Thickness	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Material	Ratings	Weight	Weight	Container Type	Height [z]	Height [z]
Hoffman Enclosures, Inc. Q20129ABD	Cover Included	37.2 in²	240 cm²	Gray	3 mm	0.118 in	120 mm	7.874 in	4.724 in	200 mm	PCB Supports Sealing Gasket Wall Mount	Plastic ABS	12 13 4X 6 IP67 NEMA 4 UL-508A	362.87 g	0.8 lb	Box	3.386 in	86 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Cover Included 7.874" L x 4.724" W (200.00mm x 120.00mm) X 3.386" (86.00mm)
